Description
Graduation 0,01 / 0,1 mm

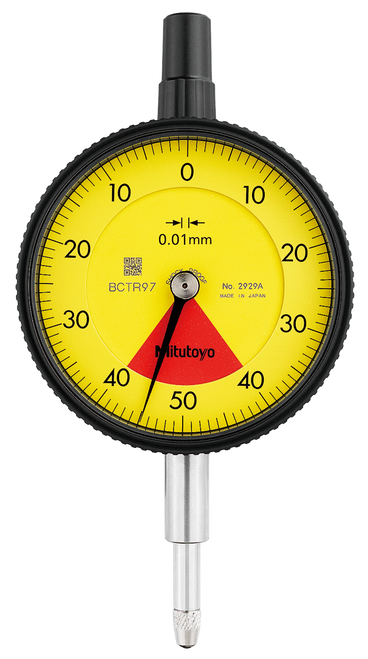

This is a one revolution dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
- It eliminates the possibility of reading errors due to miscounting multiple revolutions.
Features
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
ISO type
|
| Range: |
0,8 mm
(plunger stroke: 5 mm) |
| Range per rev.: |
1 mm
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| Scale: |
0-50-0
|
| Measuring force: |
0,4-1,4
|
| MPE any 1/10 revolution: |
5 ?m
|
| MPE measuring range: |
7 ?m
|
| H MPE (Hysteresis): |
3 ?m
|
| R MPE (Repeatability): |
3 ?m
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| One revolution: |
Yes
|
| Shockproof: |
Yes
|
| fu: |
3 ?m
|
| Mass: |
136 g
|
