Description

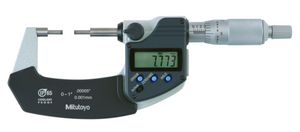

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:- Outstanding accuracy and oil-resistant material used for all plastic parts (IP65)
- Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Features
| Digital/Analog: | Digital |
| Inch-Metric: | Inch/Metric |
| Range: | 1 - 2 " |
| Digital step: | 0,00005"/0,001 mm |
| Maximum Permissible Error J MPE: | ?0,0001" |
| Flatness: | 0,000012" |
| Parallelism: | 0,00008" |
| Display: | LCD, character height 7.5 mm |
| Measuring face: | Carbide-tipped, micro-lap finish, stepped |
| Anvil / Spindle: | Type A, D=3 mm |
| Mass: | 470 g |
| Measuring spindle: | With spindle lock, ?6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?18 mm |
| Measuring force: | 5 - 10 N |
| Power supply: | 1 battery SR-44 |
| Battery life: | Approx. 2,4 years |
| Delivered: | Including box, setting standard (from 25 mm upward), key, 1 battery |
| ABS / INC (INC ZERO): | Yes |
| Auto Power OFF after 20 min. non use: | Yes |
| Function lock: | Yes |
| HOLD: | Yes |
