Description

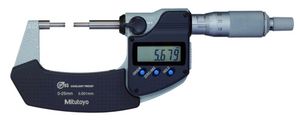

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:- Outstanding accuracy and oil-resistant material used for all plastic parts (IP65)
- Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Features
| Digital/Analog: | Digital
|
| Inch-Metric: | Inch/Metric
|
| Range: | 2 - 3 "
|
| Digital step: | 0,00005"/0,001 mm
|
| Maximum Permissible Error J MPE: | ±0,0001"
|
| Flatness: | 0,000012"
|
| Parallelism: | 0,00008"
|
| Display: | LCD, character height 7.5 mm
|
| Measuring face: | Carbide-tipped, micro-lap finish, stepped
|
| Anvil / Spindle: | Type A, D=3 mm
|
| Mass: | 625 g
|
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: | 5 - 10 N
|
| Power supply: | 1 battery SR-44
|
| Battery life: | Approx. 2,4 years
|
| Delivered: | Including box, setting standard (from 25 mm upward), key, 1 battery
|
| ABS / INC (INC ZERO): | Yes
|
| Auto Power OFF after 20 min. non use: | Yes
|
| Function lock: | Yes
|
| HOLD: | Yes
|
