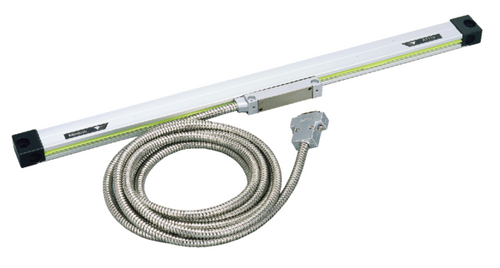

Description
- Suitable for milling machines, XY tables, jigs, etc.
- Glass scale - Zero not coded
- Expansion factor (8 ± 1)x 10-6/K-1
- An armoured inox signal cable is used to connect the DRO counter
Features
Accuracy: | (5+5L/1000) µm
L = Effective range (mm) |
Output waveform: | Two 90° phase-shifted sinusoidal signals
|
Max. drive speed: | up to 50 m/min
|
Signal period: | 20 µm
|
Scale reference points: | 50 mm
|
Dust/water protection level: | IP53
|
Cable length: | 3.4 m
|
Effective range: | 700 mm
|
Mass: | 1600 g
|
