Description
- Suitable for milling machines, XY tables, jigs, etc.
- Glass scale - Zero not coded
- Expansion factor (8 ? 1)x 10-6/K-1
- An armoured inox signal cable is used to connect the DRO counter
Features
| Accuracy: | (5+5L/1000) ?m L = Effective range (mm) |
| Output waveform: | Two 90? phase-shifted sinusoidal signals |
| Max. drive speed: | up to 50 m/min |
| Signal period: | 20 ?m |
| Scale reference points: | 50 mm |
| Dust/water protection level: | IP53 |
| Cable length: | 4.9 m |
| Effective range: | 1,400 mm |
| Mass: | 3050 g |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 539-276-30R,"AT116-350
$385.20
DescriptionSuitable for milling machines, XY tables, jigs, etc.Glass scale - Zero not codedExpansion factor (8 ? 1)x 10-6/K-1An armoured inox signal cable is used to connect the DRO counterFeatures...
Mitutoyo
Mitutoyo 539-287-30R,"AT116-1000
$822.60
DescriptionSuitable for milling machines, XY tables, jigs, etc.Glass scale - Zero not codedExpansion factor (8 ? 1)x 10-6/K-1An armoured inox signal cable is used to connect the DRO counterFeatures...
Mitutoyo
Mitutoyo 539-278-30R,"AT116-450
$478.00
Description Suitable for milling machines, XY tables, jigs, etc. Glass scale - Zero not coded Expansion factor (8 ± 1)x 10-6/K-1 An armoured inox signal cable is used to connect the DRO counter ...
Mitutoyo

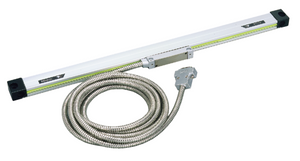

Mitutoyo 539-273-30R,"AT116-200
