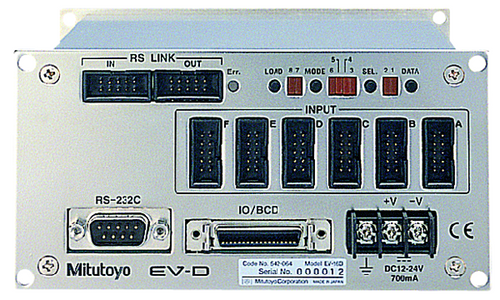

Description
- You can connect up to six gauges, and by using the RS Link function, you can connect up to 10 EV Counters to one PC.
- Multi-point measuring systems with a maximum of 60 gauges can be configured.
- You can select several different output modes, including I/O output for tolerance judgement and Segment output, BCD data output and RS-232C output.
Specification
| Resolution: | 0,001/0,01 (automatic setting by gauge) |
| ZERO SET: | Yes |
| Model: | For 542-064 |
| PRESET: | Yes |
| External HOLD: | Yes |
| MAX?/?MIN?/?Difference measurement: | Yes |
| Maximum input frequency: | 1.25 MHz (differential square-wave) : Max counting Speed : 5MHz |
| Mm?/?inch switching: | Yes |
| Max. input frequency: | - |
| Environmental conditions: | 0°C to 40°C (20 % to 80 % relative humidity, no condensation) °C |
| RS link: | Yes |
| Input signal type: | Digimatic code |
| Applicable gauge: | Digimatic Indicator Digimatic Scale Units Linear Gauge LGS/LGD |
| Gauge inputs: | 6 |
| Delivered: | AC adapter, AC cable and terminal connecting cables are not included. Please see accessories below. |
| Mass: | 830 |
| Counting direction switchable: | Yes |
| External PRESET / ZERO: | Yes |
| Calculation function (with formula): | Yes |
| Display: | D EV Unit: red LED display, 6 digit plus sign 8 digit internal to EV-Counter |
| Tolerance judgement display: | LED display (3 steps: Amber, Green, Red) |
