Description
This linear gauge has a large measuring range 100 mmSpecification
| Range: | 0 - 100 |
| Accuracy: | (2,5 + L/100) ?m ? 3 ?m L=measured length in mm |
| Measuring force: | 8 N with spindle down, 6.5 N spindle horizontal, 5 N spindle upwards |
| Resolution: | 1 |
| Scale: | Photoelectric linear encoder |
| Contact point: | ? 3 mm carbide (mounting threads M2.5 x 0.45) |
| Dimensions (WxDxH): | 90 x 175 x 74 mm |
| Cable length: | 2 |
| Power supply: | 5 V (4.8 V to 5.2 V) |
| Max. response speed: | 800 mm/s |
| Remarks: | Standard |
| Output signal: | 90? phase difference, differential square wave (RS-422A equivalent) |
| Environmental conditions: | 0?C ? 40?C (20% to 80% rel. humidity, no condensation) ?C |
| Bearing type: | Bearing type |
| Mass: | 750 |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 542-336 LG-1100N/LOW MEAS FORCE
$1,970.00
DescriptionThis linear gauge has a large measuring range 100 mmSpecification Range:
Mitutoyo
Mitutoyo 542-334 Linear Gage LG-1100NP
$2,137.50
DescriptionThis linear gauge has a large measuring range 100 mmSpecification Range:
Mitutoyo
Mitutoyo 542-312 LINEAR GAGE LG-01100
$2,270.50
DescriptionThis linear gauge has a large measuring range 100 mmSpecification Range:
Mitutoyo
Mitutoyo 542-314 LINEAR GAGE LG-01100P
$2,440.00
DescriptionThis linear gauge has a large measuring range 100 mmSpecification Range:
Mitutoyo

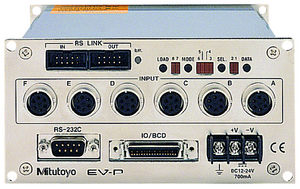

Mitutoyo 542-063 EV-16P COUNTER FOR LG
