Description

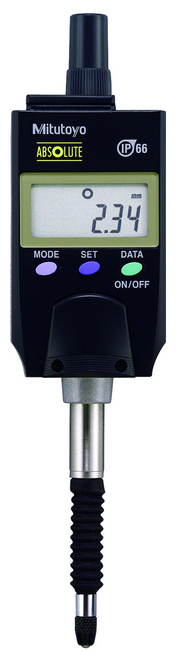

This is a slim back-plunger model that is highly resilient and robust.The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits:
- It slim body design is ideal for multi-point measurements.
- The ABSOLUTE sensor means you don?t have to carry out origin setting every time you power it on, saving you time and hassle.
- It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid.
- Switchable display orientation gives you more mounting options.
- You can perform GO/?NG judgement by setting the upper and lower tolerances.
Specification
| DATA/HOLD: | Yes |
| Digital/Analog: | Digital |
| Inch-Metric: | Metric |
| Range: | 12,7 mm |
| Digital step: | 0,01 mm |
| Max. Permissible Error E MPE: | 0,02 mm |
| H MPE (Hysteresis): | 0,02 mm |
| R MPE (Repeatability): | 0,01 mm |
| Digimatic data output: | Yes |
| Measuring force: | ?2,5 N |
| Type: | EN ISO Standard |
| Protection: | IP66 |
| Display: | LCD, character height: 6.2 mm |
| Max. response speed: | Unlimited |
| Alarm: | Low voltage, counting value composition error, overflow error, tolerance limit setting error |
| Stem ?: | 8 mm |
| Contact point: | Carbide ball, thread M 2.5 x 0.45 mm |
| Power supply: | 1 battery SR-44 |
| Battery life: | approx. 7000 hours |
| Delivered: | Including 1 battery |
| Mass: | 130 |
| ON/OFF: | Yes |
| External PRESET / ZERO: | Yes |
| PRESET: | Yes |
| GO/?NG judgement: | Yes |
| Counting direction switchable: | Yes |
