Features:- Speed ramping feature slowly increases motor speed for enhanced coupling and improved stirring. Microprocessor-controlled for precise speed regulation.
- The timer counts up or when programmed to a set time, will turn off stirring & sound alarm when the timer reaches 0.
- Independent LED displays for speed, and time (on digital models); Knob with 1-10 dial markings (on non-digital models)
Applications:
- Carboys
- Chromatography
- Mixing viscous materials, polymers, pilot scale and another large volume
- Stirring and Mixing
OHAUS offers four models for stirring capacities between 25 to 200 L allowing you to choose the right model for your application. The broad top plate surface allows the processing of oversized vessels such as carboys for your large volume stirring. The powerful magnetic drive is also capable of mixing highly viscous materials.

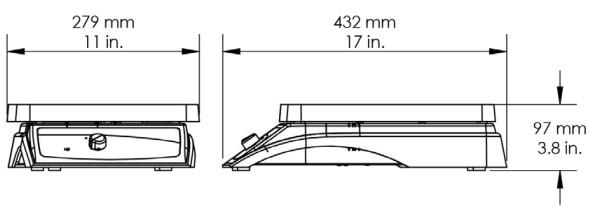

Dimensions
Technical Details
| Control | Analog |
| Power Consumption | 75 W |
| Dimensions | 17 in x 4 in x 11 in (432 mm x 97 mm x 279 mm) (LxHxW) |
| Net Weight | 13.6 lb (6.2 kg) |
| Plate Construction | Glass Filled Nylon |
| Plate Size | 12.5 in x 11 in (318 mm x 279 mm) |
| Safety Certification | UL; cUL |
| Working Environment | 41°F - 104°F, 20% to 80%RH non-condensing (5°C - 40°C, 20% to 80% RH, non-condensing) |
| Speed Range | 60 rpm to 1400 rpm |
| Capacity | 25 L |
| Power | 120V, 1.3A, 50/60Hz |
