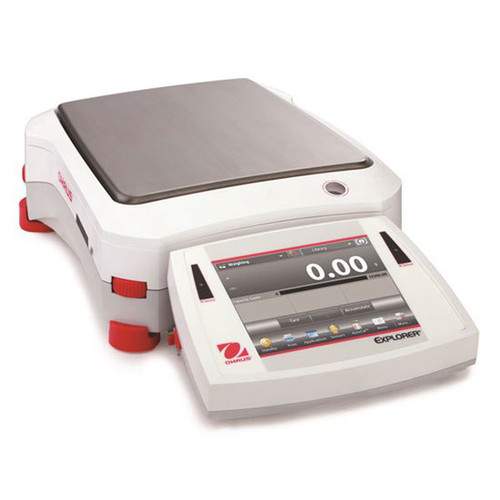

Compact Bench Scales EX2202/E
Explorer® Analytical and Precision Balances
Newly Expanded
The OHAUS Explorer® Series has risen to the next level of ingenuity-expanding on its modern features & design to offer unmatched functionalityin a line of high-performance balances unlike any other on the market.
- Ingenious DESIGN-The base and display separate for maximum flexibility in anywork area. Draftshield models isolate the weighing chamber to enhance stability andspeed results while offering maximum accessibility to the weighing chamber throughtop-mounted side doors or through the versatile top door that flips or slides open.Hands-free entry is available with optional automated side doors.
- Intelligent PERFORMANCE-All Explorers have newly optimized linearity andrepeatability specifications and enhanced vibration filtering for better balance stability.All models also come standard with AutoCal? automatic internal calibration. 3Ã?3 filteringsetup ensures fast and stable weighing results. The Explorer EX.../E models additionallyoffer traditional external calibration. These combined enhancements improve accuracy,efficiency, and throughput.
- Intuitive OPERATION-A large color touch-screen display, icon-driven applicationsoftware that features 14 unique application modes, and a 3 level adjustable angle displaymake Explorer the easiest to use, most advanced balance in its class today.
Applications
- Weighing (17 units + custom units)
- Parts Counting
- % weighing
- Animal/Dynamic Weighing
- Checkweighing
- Filling
- Totalization
- Formulation
- Differential weighing
- Density determination
- Peak hold
- Ingredient costing
- Pipette adjustment
- Gross/Net/Tare Weighing
Units of Measurement
- Gram
- Milligram
- Kilogram
- Carat
- Ounce
- Ounce Troy
- Pound
- Pennyweight
- Grain
- Newton
- Momme
- Mesghal
- Hong Kong Tael
- Singapore Tael
- Taiwan Tael
- Tical
- Tola
- Baht
- 3 Custom Units
Technical Details
| Design Features | Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan |
| Display | 5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness |
| Operation | AC adapter (included) |
| Communication | RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock. |
| Construction | Modular design, metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors and flip/sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, full housing in-use cover |
| Capacity | 2200g |
| Readability | 0.01g |
| Platform | 190 x 200mm |
| Test Weight | 2kg, OIML F1 or ASTM Class 2 |
