Compact Bench Scales EX223/E
Explorer® Analytical and Precision Balances
Newly Expanded
The OHAUS Explorer® Series has risen to the next level of ingenuity-expanding on its modern features & design to offer unmatched functionalityin a line of high-performance balances unlike any other on the market.
- Ingenious DESIGN-The base and display separate for maximum flexibility in anywork area. Draftshield models isolate the weighing chamber to enhance stability andspeed results while offering maximum accessibility to the weighing chamber throughtop-mounted side doors or through the versatile top door that flips or slides open.Hands-free entry is available with optional automated side doors.
- Intelligent PERFORMANCE-All Explorers have newly optimized linearity andrepeatability specifications and enhanced vibration filtering for better balance stability.All models also come standard with AutoCal automatic internal calibration. 3Ã3 filteringsetup ensures fast and stable weighing results. The Explorer EX.../E models additionallyoffer traditional external calibration. These combined enhancements improve accuracy,efficiency, and throughput.
- Intuitive OPERATION-A large color touch-screen display, icon-driven applicationsoftware that features 14 unique application modes, and a 3 level adjustable angle displaymake Explorer the easiest to use, most advanced balance in its class today.
Applications
- Weighing (17 units + custom units)
- Parts Counting
- % weighing
- Animal/Dynamic Weighing
- Checkweighing
- Filling
- Totalization
- Formulation
- Differential weighing
- Density determination
- Peak hold
- Ingredient costing
- Pipette adjustment
- Gross/Net/Tare Weighing
Units of Measurement
- Gram
- Milligram
- Kilogram
- Carat
- Ounce
- Ounce Troy
- Pound
- Pennyweight
- Grain
- Newton
- Momme
- Mesghal
- Hong Kong Tael
- Singapore Tael
- Taiwan Tael
- Tical
- Tola
- Baht
- 3 Custom Units
Technical Details
| Design Features | 3-door draftshield with removable panels on 0.1mg and 1 mg modelswith draftshield light. Modular display design with adjustable angle(attach to base, wall or optional tower). AutoCal automatic internalcalibration. Level assist feature with illuminated level indicator.Selectable environmental and auto-print settings. Integral weigh belowhook. Protective in-use cover. Software lock switch |
| Display | High resolution 14.5cm (diagonal) full colour VGA touch display including QWERTY and numeric key pads plus weighing capacity indication |
| Operation | Mains Operation |
| Communication | Easy access communication ports (USB, RS232) plus 3rd communication port slot (Ethernet or 2nd RS232). GLP and GMP including date and time, Direct Data Transfer. |
| Construction | Metal base, ABS top housing, stainless steel pan, glass draftshield with flip-top door, replaceable in-use cover |
| Capacity | 220g |
| Readability | 1mg |
| Platform | 130mm |
| Test Weight | 200g, OIML E2 or ASTM Class 1 |
0 Reviews Hide Reviews Show Reviews
Ohaus

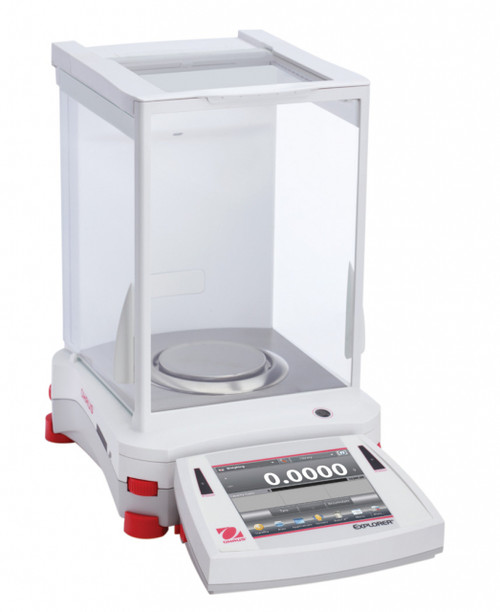

OHAUS Electronic Balance, EX223
$3,538.00
Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. Fast stabilization time Improves operational...
