Description

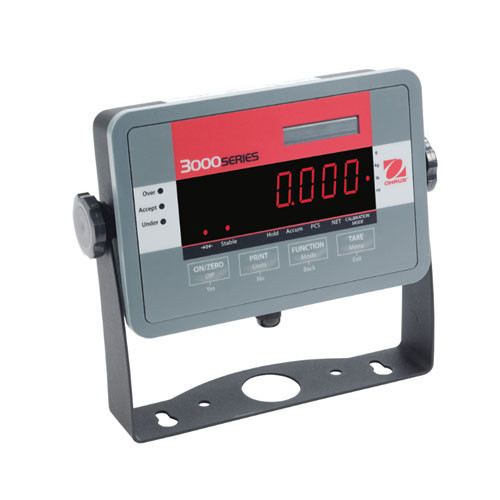

Ohaus, 83998166, T32ME Defender 3000 Weighing Scale Indicator with NTEP Certificate
Designed With Affordability In Mind For Industrial Applications!
Now available in four models, the OHAUS 3000 Series of Economical Indicators offer software modes for common industrial weighing applications:
- The new T32ME is designed for floor scale and other installations where internal battery power are not required. Both feature a painted steel housing with high-impact ABS faceplate, bi-directional RS232 and software for weighing, simple parts counting, basic checkweighing, display hold and accumulation of weight results. Painted steel mounting bracket included.
Standard Features Include:
- lb, oz, lb-oz, kg and g weighing units
- Ability to drive up to four 350© load cells
- Up to 20,000 lb/kg capacity with 20,000d maximum displayed default weighing resolution
- 6,000d NTEP certified and Measurement Canada approved Legal-for-Trade weighing resolution
- Minimum parts counting average piece weight of 1d
- Built-in bi-directional RS232C for printing or connection to PC
- Adjustable filtering levels to meet the requirements of industrial environments
Specification
| Full Scale Capacity Range | 5 to 20,000 lb or kg |
| Displayed Resolution | 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved |
| Construction | ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket |
| Weight Display | 6-digit, 7-segment red LED 0.8in / 20mm digit height |
| Keyboard | 4-button mechanical switches, raised tactile keys |
| Weighing Units | lb, oz, lb-oz, kg, g |
| Extra Functions/Modes | Parts Counting, Display Hold, Checkweighing, Weight Accumulation |
| Checkweigh Display | 3 LED: Red-green-yellow (Over-Accept-Under) |
| Minimum Average Piece Weight | 1d |
| Load Cell Excitation / Input Sensitivity | 5V DC / up to 3 mV/V (min 1 1/4V/d) |
| Load Cell Drive | Up to four 350 load cells |
| Stabilization Time | Within 2 seconds |
| Zeroing Range | 2% or 100% of capacity |
| Auto-zero Tracking | Off, 0.5, 1 or 3 scale divisions |
| Span Calibration | 5 lb or 5 kg to 100% capacity |
| Interface | Bidirectional RS232C |
| Operating Temperature Range | 14°F to 104°F / -10°C to 40°C Maximum relative humidity 80 % for temperatures up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing |
| Power | 9-12 VDC, 0.5A, external AC adapter |
| Enclosure Dimensions (W x D x H) | 7.8 x 1.8 x 5.2 in / 198 x 46 x 132 mm |
| Net Weight | 1.5 lb / 0.7 kg |
