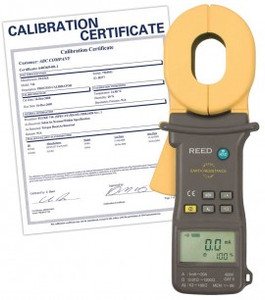

REED Instruments MS2301 EARTH RESISTANCE CLAMP METER

(No reviews yet) Write a Review

$1,214.10

Brand: REED Instruments
SKU:: MS2301
UPC:

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

REED MS2301 Description

This autoranging earth resistance clamp meter measures ground resistance and leakage current. The MS2301 has internal memory capable of storing up to 99 measurements and features a double molded conductor clamp for added protection. Includes resistance calibration loop for quick on-site verification.

Features

Autoranging ground resistance and leakage current measurements
0.001? resolution for low resistance measurements
Basic accuracy of ± 0.01?
Internal memory stores up to 99 readings
User adjustable alarm threshold
Display hold function
Durable double molded conductor clamp
1.2" (30mm) jaw size for large ground rods
Low battery indicator and auto shut off
Cat. III 600V safety rating

REED MS2301 Specifications

Ground Resistance
Range	0.01 to 0.999?, 1 to 9.99?, 10 to 99.9?, 100 to 199.9?, 200 to 400?, 400 to 600?, 600 to 1200?
Accuracy	0.01 to 0.999?: ±(1.5% +0.01?) 1 to 9.99?: ±(1.5% +0.1?) 10 to 99.9?: ±(2.0% +0.3?) 100 to 199.9?: ±(3.0% +1?) 200 to 400?: ±(6.0% +5?) 400 to 600?: ±(10% +10?) 600 to 1200?: ±(20% +20?)
Resolution	0.001?, 0.01?, 0.1?, 1?, 5?, 10?, 20?
Current
Range	100mA, 300mA, 1A, 3A, 10A, 20A
Accuracy	100mA: ±(2.5% +1mA) 300mA: ±(2.5% +2mA) 1A: ±(2.5% +0.003A) 3A: ±(2.5% +0.01A) 10A: ±(2.5% +0.03A) 20A: ±(2.5% +0.05A)
Resolution	0.1mA, 0.3mA, 0.001A, 0.003A, 0.01A, 0.03A
General Specifications
Range Selection	Autoranging
Sampling Time	1 sec.
Display	9,999 count LCD display
User Selectable Alarm	Yes (High and Low)
Display Hold	Yes
Internal Memory	Up to 99 datapoints
Autoshut off	Yes (after 5 mins, off)
Power Supply	9V Battery
Battery Life	Approx. 10 hours of continuous use (Alkaline)
Low Battery Indicator	Yes
Jaw Opening	1.2" (30mm)
Overvoltage Category	CAT. II 600V
Product Certifications	CE
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	10.9 x 4.1 x 2.1" (276 x 104 x 54 mm)
Weight	2.1lbs (1050g)
