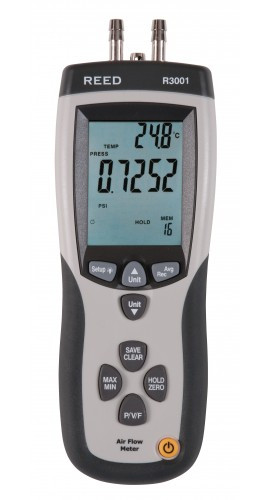

REED Instruments R3001 ANEMOMETER/MANOMETER, PITOT TUBE, 80.0M/S/±5000PA

(No reviews yet) Write a Review

MSRP: $555.50

$449.00

(You save $106.50 )

Brand: REED Instruments
SKU:: R3001
UPC:

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

This pitot tube anemometer and differential manometer provides accurate air velocity, airflow and ambient air temperature measurements. The R3001 is capable of capturing maximum, minimum, average and relative readings and features a large dual LCD display with backlit functionality for low lit environments.

Features

Dual LCD simultaneously displays pressure, air velocity or airflow with temperature
Max, Min, Avg, Relative and Data hold functions
Integrated real-time clock time-stamps measurements
Large, easy-to-read backlit LCD display
Zero button for offset correction or measurement
User selectable unit of measure
Push button calculation of rectangular or circular duct areas
USB interface and software included
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

Included

Anemometer/Manometer
Black and White Silica Tubes
Pitot Tube
USB Cable
Software
Battery
Hard Carrying Case

Specification

Measuring Ranges	±5000 Pa 0.752 psi 50.00mbar 20.07 inH₂O 509.8 mmH₂O
Accuracy	±0.3% FS
Resolution	1 Pa 0.1 mmH₂O 0.01 mbar / inH₂O 0.0001 psi
Repeatability	±0.2% FS
Linearity/Hysteresis	±0.29% FS
Max Pressure	10 psi
Measuring Ranges	1 to 80 m/s 200 to 15,733 fpm 3.6 to 288 km/h 2.24 to 178.66 mph 2.0 to 154.6 knots Air Volume: 0 to 99,999 (CFM/CMM) Temperature: 32 to 122°F (0 to 50°C)
Accuracy	±2.5% rdg. Air Volume: ±1% FS Temperature: ±1.5°C (3°F)
Resolution	0.01 m/s 1 fpm 0.1 km/h 0.01 mph 0.1 knots 0.001 CFM/CMM 0.1°F/°C
Display	5-digit, Dual LCD Display
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Average	Yes
Differential Pressure	Yes
Zero Function	Yes
Over range Indicator	Yes
Under range Indicator	Yes
Air Volume Calculation (CFM/CMM)	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Response Time	2 times/sec.
Internal Memory	Yes
Auto Shut-off	Yes (after 20 mins)
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	9V battery
PC Connectivity	USB Cable (Included)
Software	Yes (included)
Software OS Compatibility	Windows XP, 7, 8 and 10
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity	10-80%
Dimensions	8.2 x 2.9 x 1.9" (210 x 75 x 50mm)
Weight	12 oz (340g)
