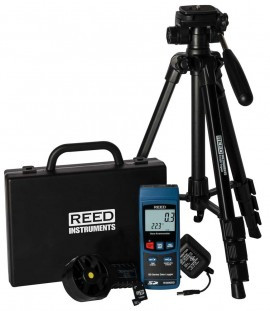

REED Instruments R4000SD-KIT2 DATA LOGGING VANE THERMO-ANEMOMETER WITH TRIPOD, SD CARD AND POWER ADAPTER

REED Instruments R4000SD-KIT2 DATA LOGGING VANE THERMO-ANEMOMETER WITH TRIPOD, SD CARD AND POWER ADAPTER

(No reviews yet) Write a Review
$489.00
Brand
SKU:
R4000SD-KIT2

Adding to cart… The item has been added
Add to Wish List

Description

REED Instruments, R4000SD-KIT2, Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter

R4000SD-KIT2 Includes Only:

  • REED R4000SD Data Logging Vane Thermo-Anemometer
  • REED R1500 Tripod
  • REED RSD-16GB Micro SD Memory Card w/ Adapter, 16GB
  • REED RSD-ADP-NA AC Adapter, 110V

Features:

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings
  • Low friction ball-bearing, rotating vane probe ensures high accuracy readings
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Tripod mount on probe and instrument for long-term monitoring
  • Low battery indicator and auto shut off

Applications:

  • HVAC/R and refrigeration servicing
  • Detecting filter blockage
  • Condensers and chillers

Specification

Measuring Ranges
  • fpm: 79 to 5906
  • m/s: 0.4 to 30
  • km/h: 1.4 to 108
  • mph: 0.9 to 67.1
  • knots: 0.8 to 58.3
  • Air Temperature: 32 to 122°F (0 to 50°C)
  • Type K Temperature:
  • -148.0 to 2372.0°F (-100.0 to 1300°C)
  • Type J Temperature:
  • -148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy
  • Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot)
  • Air Temperature: 1.5°F (±0.8°C)
  • Temperature: ?-58°F (-50°C)
  • ±(0.4% + 1°F (0.5°C))
  • ?-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
Resolution
  • fpm: 1m/s, km/h, mph,
  • knot: 0.1
  • Temperature: 0.1°F/°C
Response Time<1 second
Display5-digit, Dual LCD Display
