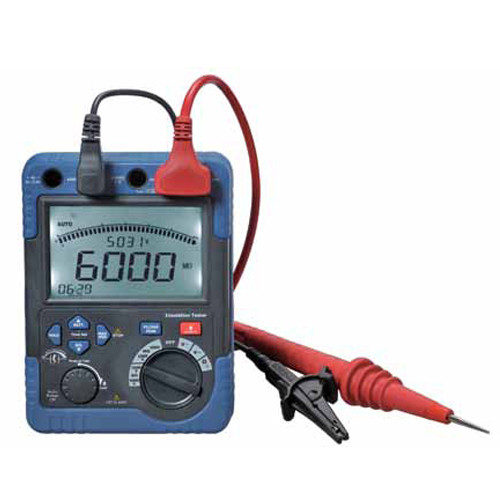

REED R5002 High Voltage Insulation Tester
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED R5002 High Voltage Insulation Tester
MSRP:
$915.50
Now:
$764.00
Was:
$849.00
(You save
$151.50
)
- Brand
- REED Instruments
- SKU:
- R5002
- Availability:
- In Stock
Description
R5002 Includes Only:
- Digital High Voltage Insulation Tester
- Test Leads
- Alligator Clips
- AC Adapter
- Batteries
- Hard Carrying Case
This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60G?. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.
Features:
- Test Voltages of 500V, 1000V, 2500V, and 5000V
- Measure Insulation Resistance to 60G?
- Backlit LCD display with analog bargraph
- Timer function for insulation resistance measurements (1 to 15min)
- AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions
- Polarization index measurement (PI)
- Dielectric absorption ratio measurements (DAR)
- Max/Min, Peak, Relative value and Data Hold functions
- Cat. IV 600V safety rating
- Low battery indicator and auto shut off
Specification
| Test Voltage | |
| Ranges | 500V, 1000V, 2500V, 5000V |
| Accuracy | ±2.5% of reading |
| Insulation Resistance | |
| Ranges | 0 to 6M?, 0 to 60M?, 0 to 600M?, 0 to 6G?, 0 to 60G? |
| Accuracy | ±2.5% of reading |
| AC/DC Voltage | |
| Range | 0 to 600V |
| Accuracy | ±1% of reading |
| Resistance | |
| Range | 0 to 600? |
| Accuracy | ±1.5% of reading |
| General Specifications | |
| Range Selection | Manual / Autoranging |
| Display | 6000 count LCD display with bargraph |
| Max/Min, Peak, Relative and Data Hold Functions | Yes |
| Sampling Rate | 2.5 times/sec. |
| Backlit Display | Yes |
| Analog Bargraph | Yes |
| Auto Power Off | Yes (after 20 minutes) |
| Continuity Buzzer | Yes (< 35?) |
| Power Supply | 8 C Batteries or AC Adapter (included) |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Overvoltage Category | CAT. IV 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 7.8 x 5.8 x 3.4" (198 x 148 x 86mm) |
| Weight | 3lbs (1.5kg) |
