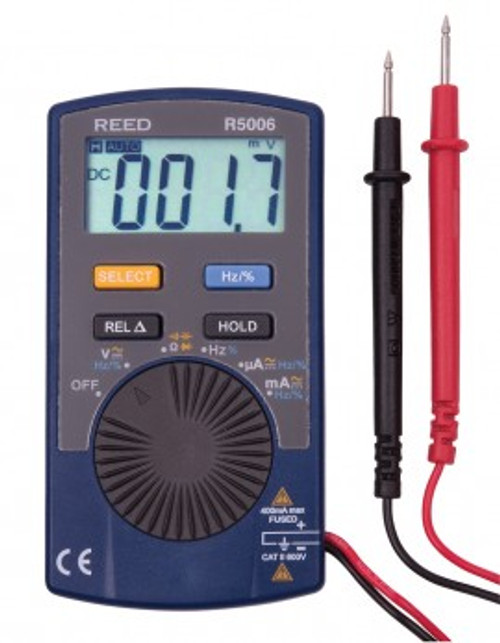

REED Instruments R5006-NIST MINI DIGITAL MULTIMETER, 600V AC/DC W/NIST CERT

REED Instruments R5006-NIST MINI DIGITAL MULTIMETER, 600V AC/DC W/NIST CERT Autoranging digital multimeter with 4,000 count LCD display. REED R5006 Offers This pocket-sized digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance and duty cycle. Designed to fit into the palm of your hand this compact DMM also includes diode test and continuity check functions. Features Pocket-sized, auto-ranging digital multimeter Measures AC/DC voltage and current, resistance, frequency, capacitance and duty cycle Diode test and continuity check functions Data hold and Relative mode 4000-count LCD display Low battery indicator and auto power-off Conforms with IEC61010 Cat. II 600V [custom1] REED R5006 Specifications AC/DC Voltage Range AC: 4, 40, 400, 600VDC: 400mV, 4, 40, 400, 600V Accuracy AC: 4,40,400V ±(1.2% rdg. + 3 dgt.)600V ±(1.5% rdg. + 5 dgt.)DC: 400mV ±(0.8% rdg. + 3 dgt.)4,40,400V ±(0.8% rdg. + 1 dgt.)600V ±(1% rdg. + 3 dgt.) Resolution AC: 1, 10, 100mV, 1VDC: 0.1, 1, 10, 100mV, 1V AC/DC Current Range 400, 4000µA, 40, 400mA Accuracy AC: 400/4000µA ±(1.5% rdg. + 5 dgt.)40/400mA ±(2% rdg. + 5 dgt.)DC: 400/4000µA ±(1.0% rdg. + 3 dgt.)40/400mA ±(1.2% rdg. + 5 dgt.) Resolution 0.1, 1, 10, 100µA Resistance Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ Accuracy 400Ω ±(1.2% rdg. + 2 dgt.)4/40/400KΩ ±(1% rdg. + 2 dgt.)4MΩ ±(1.2% rdg. + 2 dgt.)40MΩ ±(1.5% rdg. + 2 dgt.) Resolution 0.1, 1, 10, 100Ω, 1, 10kΩ Capacitance Range 4, 40, 400nF, 4, 40, 100µF Accuracy 40, 400nF, 4, 40µF ±(4% rdg. + 3 dgt.)100µF ±(5% rdg. + 10 dgt.) Resolution 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1µF Frequency Range 99.9Hz, 0.999, 9.99, 99.9kHz Accuracy ±(0.5% rdg. + 3 dgt.) Resolution 0.1Hz, 0.001, 0.01, 0.1kHz General Specifications Range Selection Autoranging Display 4,000 count LCD display Display Hold Yes Diode Test Yes Continuity Check Audible signal if resistance ‰¤60Ω Duty Cycle Yes (0.1% - 99.9%) Auto Power Off Yes (after 30 minutes) Power Supply CR2032 (3V Battery) Low Battery Indicator Yes Fuse Protection Yes Replaceable Test Leads No Overvoltage Category CAT. II 600V Product Certifications CE Operating Temperature 32 to 104°F (0 to 40°C) Storage Temperature 14 to 122°F (-10 to 50°C) Dimensions 4.3 x 2.3 x 0.43" (110 x 58 x 11mm) Weight 2.7oz (76g) [/custom1]
