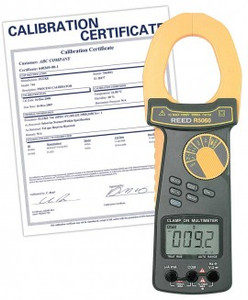

REED R5050 1000A True RMS AC/DC Clamp Meter, includes Traceable Certificate
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED R5050 1000A True RMS AC/DC Clamp Meter, includes Traceable Certificate
MSRP:
$391.60
$324.00
(You save
$67.60
)
- Brand
- REED Instruments
- SKU:
- R5050-NIST
- Availability:
- In Stock
Description
R5050-NIST, 1000A True RMS AC/DC Clamp Meter
Includes:
- True RMS AC/DC Clamp Meter
- Test Leads
- Battery
- Soft Carrying Case
- NIST Cerificate
This durable True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance and frequency. Featuring a 4,000 count LCD display with a 42-segment analog bargraph, the R5050 includes a peak hold and min/max functions.
Features:
- Measures AC/DC current/voltage, resistance and frequency
- 4000-count LCD display with analog bargraph
- Low battery and overrange indicators
- True RMS measurements
- Min/Max, display hold, peak hold and relative mode
- Diode test and continuity check functions
- Cat. III 600V, Cat. II 1000V safety rating
Applications:
- Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.
- Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.
Specification
| AC/DC Current | |
| Range | 40, 400, 1000A |
| Accuracy | AC: ±(1.9% rdg. +5 dgt.)DC: ±(2.5% rdg. +10 dgt.) |
| Resolution | 0.01, 0.1, 1A |
| AC/DC Voltage | |
| Range | AC: 400, 750VDC: 400, 1000V |
| Accuracy | AC: ±(1.5% rdg. +5 dgt.)DC: ±(1% rdg. +2 dgt.) |
| Resolution | 0.1, 1V |
| Resistance | |
| Range | 400, 4000? |
| Accuracy | ±(1% rdg. +3 dgt.)0.1, 1? |
| Frequency | |
| Range | 4kHz, 10kHz |
| Accuracy | ±(0.1% rdg. +1 dgt.) |
| Resolution | 1Hz, 10Hz |
| General Specifications | |
| Range Selection | Autoranging / Manual |
| True RMS | Yes |
| Display | 4,000 count LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Peak Hold | Yes |
| Zero Push Button Adjustment | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Analog Bargraph | Yes (42-segment) |
| Continuity Check | Audible signal if resistance <100? |
| Autoshut off | Yes (after 30 mins) |
| Power Supply | 9V Battery |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.5" (40mm), up to 500 MCM |
| Overvoltage Category | CAT. III 600V, CAT. II 1000V |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Dimensions | 9.5x 2.6 x 1.4" (242 x 66 x 36 mm) |
| Weight | 14oz (400g) |
