REED Instruments R5300 CONTINUITY TESTER
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED Instruments R5300 CONTINUITY TESTER
MSRP:
$40.00
Now:
$28.99
Was:
$29.00
(You save
$11.01
)
- Brand
- REED Instruments
- SKU:
- R5300
Description
R5300 Includes Only:
- R5300 Continuity Tester
- Remote Probe
- Battery
This continuity tester is capable of checking circuits for continuity and identifying cables and wires up to 10,000 feet (3,000 meters) in length. Bright visual (bi-color LEDs) and loud audible (beeper) indicators allow wire ends to be tested in noisy environments. The R5300 is used by professional electricians, alarm/cable installers and in home audio installations.
Features:
- Local and remote continuity tester
- Lightweight design, connect alligator clips and the instrument suspends from wire/cable
- Visual (flashing bi-color LEDs) and audible (pulsating beeper) indicators
- Probe flashes green or red to indicate polarity
- Remote probe allows for one person operation
- Capable of sending signal on cable/wire runs up to 10,000 ft (3000m)
Specification
| Wire Verification Distance | 10,000 feet (3000 meters) |
| Minimum Wire Size | 26 gauge |
| Power Supply | 9V Battery |
| Product Certifications | CE |
| Visual Indicator | Yes (Green and Red LEDs) |
| Audible Indicator | Yes (Pulsating Beeper, approx. 85 dB) |
| Fuse | 0.5A/250V |
| Continuity Confirmation | Equal to or less than 2.0 K Ohms |
| Operating Temperature | 14 to 113°F (-10 to 45°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 4.5 x 3 x 1.1" (115 x 75 x 29mm) |
| Weight | 3.9oz (111g) |
0 Reviews Hide Reviews Show Reviews
REED Instruments

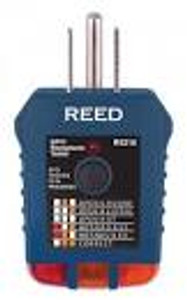

REED Instruments. RECEPTACLE TESTER, GFCI
