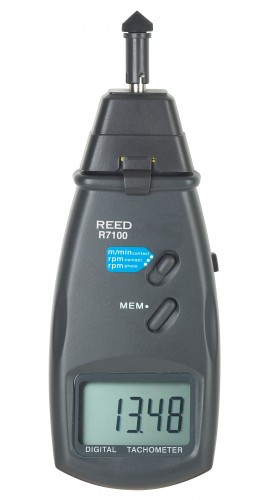

REED Instruments R7100 TACHOMETER, PHOTO/CONTACT, 99,999RPM/19,999 RPM

(No reviews yet) Write a Review

MSRP: $229.00

$149.00

(You save $80.00 )

Brand: REED Instruments
SKU:: R7100
UPC:

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) with included contact adapters. The R7100 features a built-in laser pointer to assist with identifying the target area.

Features

Dual function unit with both contact and non-contact capabilities
Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements m/min (meters per min) with included contact adapters
Built-in laser pointer identifies target area
Internal memory recalls maximum, minimum values as well as last value stored
Large LCD display and low battery indicator

Included

Photo/Contact Tachometer
Reflective Tape
Large and Small Cone Tip Adapters
Funnel Adapter
Wheel Adapter
Batteries
Mounting Screws
Hard Carrying Case

Specification

Display	5 digital,18mm ( 0.7" LCD )
Accuracy	± (0.05%+1 digital)
Sampling Time	0.8 sec (over 60 RPM)
Range Select	Auto-Range
Time Base	Quartz crystal
Detecting Distance	50 mm---500 mm (photo)
Dimension	6.3 x 2.8 x 1.5"
Power	4 x 1.5V AA Size Battery or 6V direct current stable voltage power
Power consumption	Approx 65mA
Measuring Range	Photo Tachometer: 2.5 to 99999RPM Contact Tachometer: 0.5 to 19999RPM Surface Speed: 0.05 to 1999.9m/min
Resolution	Photo Tachometer: 0.1 RPM (2.5 to 999.9 RPM) 1 RPM (over 1000 RPM) Contact Tachometer: 0.1 RPM (0.5 to 999.9 RPM) 1 RPM (over 1000 RPM) Surface Speed: 0.01 m/min (0.05 to 99.99 m/min) 0.1m/min (over 100 m/min)
