REED Instruments R8070SD-KIT DATA LOGGING SOUND METER WITH ADAPTER AND SD CARD

(No reviews yet) Write a Review

$409.00

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

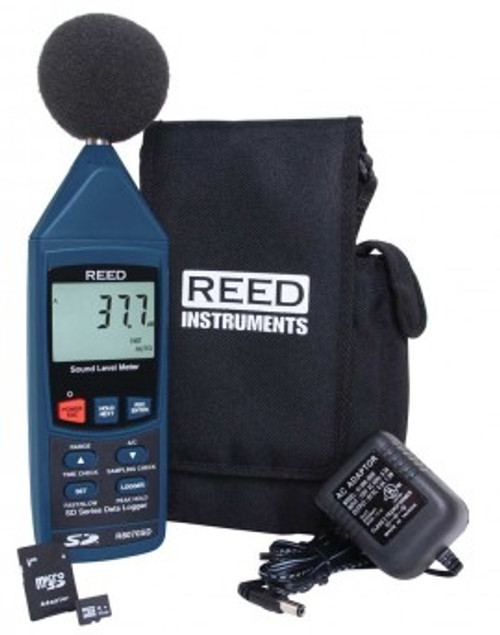

REED Instruments, R8070SD-KIT, Data Logging Sound Meter with Adapter and SD Card Kit

R8070SD-KIT Includes Only:

Features:

High accuracy of ±1.4dB meets Type 2 standards
Triple range measurement (50dB dynamic range)
A & C frequency weighting
Fast & Slow time weighting
Real time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Peak hold, Data hold and Min/Max hold
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.

Measuring Ranges	30 to 130dB Low: 30 to 80dB Med: 50 to 100dB High: 80 to 130dB Full: 30 to 130dB
Dynamic Range	50dB (in each range)
Accuracy	31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB
Resolution	0.1dB
Response Time	500ms
Frequency Range	31.5Hz to 8kHz
Frequency Weighting	A, C
Time Weighting	Fast/Slow (125ms and 1s)
Microphone	0.5" (12.7mm) electret condenser
Display	4-digit LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Alarm Indicators	Under and Over (visual on screen)
Datalogging Capabilities	Yes
