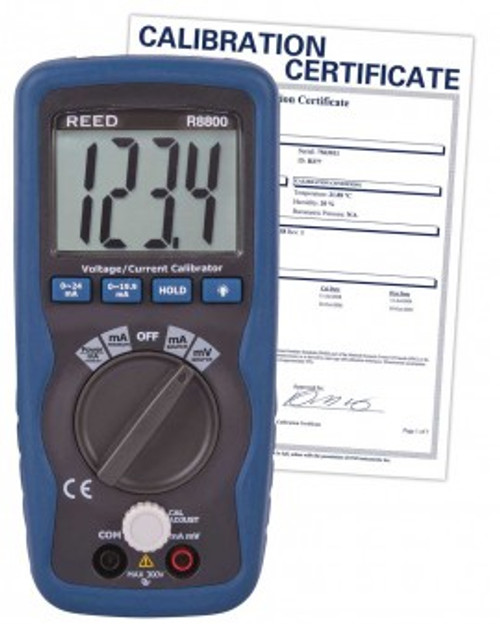

REED Instruments R8800-NIST VOLTAGE/CURRENT CALIBRATOR, MA W/NIST CERT

(No reviews yet) Write a Review

$299.00

Brand: REED Instruments
SKU:: R8800-NIST
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED R8800-NIST Description

This voltage/current calibrator calibrates and measures process signals. The R8800 is able to power and measure a two-wire current loop and features a large easy-to-read backlit LCD display for use in dimly lit environments.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

Measure and calibrate current signals
Power or measure two-wire current loops
Easy-to-read backlit LCD display
Cat. III 600V safety rating

REED R8800 Specifications

Source and Measure (mA)
Measuring Range	0 to 19.99mA 0 to 24mA
Accuracy	?(0.25% FS + 1 dgt.) ?(0.5% FS + 1 dgt.)
Resolution	0.01mA 0.1mA
Source (mV)
Measuring Range	-199.9mV to 199.9mV
Accuracy	?(0.25% FS + 1 dgt.)
Resolution	0.1mV
General Specifications
Range Selection	Manual
Display	LCD
Backlit Display	Yes
Display Hold	Yes
Kick Stand	Yes
Power Supply	9V battery
Low Battery Indicator	Yes
Fuse Protection	Yes
Replaceable Test Leads	Yes
Overvoltage Category	CAT. III 600V
Product Certifications	CE
Operating Temperature	32 to 122?F (0 to 50?C)
Storage Temperature	14 to 122?F (-10 to 50?C)
Dimensions	5.9 x 2.8 x 1.6" (150 x 70 x 40mm)
Weight	8.2oz (232g)
