REED Instruments R9910SD DATA LOGGING AIR QUALITY METER
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED Instruments R9910SD DATA LOGGING AIR QUALITY METER
$1,195.00
- Brand
- REED Instruments
- SKU:
- R9910SD
Description
R9910SD Includes Only:
- Data Logging Air Quality Meter
- Humidity Probe
- Carbon Monoxide Probe
- Carbon Dioxide Probe
- Oxygen Probe
- Hard Carrying Case
- Batteries
Features:
- Measures oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), temperature and humidity
- Records up to 3 readings simultaneously
- User adjustable audible alarms
- User selectable unit of measure (°C or °F)
- Data hold and Max/Min functions
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 2 secs to 8 hrs
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
Applications:
- Schools
- Office buildings
- Greenhouses
- Factories
- Hotels
- Hospitals
- Areas where high levels of carbon dioxide are generated
The R9910SD is capable of recording readings from 3 probes simultaneously and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 sec to 8 hours. Quickly generate an Excel file with raw data, all without the use of software.
Specification
| Subject to the use of all the optional accessories. | |
| Temperature | |
| Measuring Ranges | 32 to 122.0°F (0 to 50.0°C) Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C) Wet Bulb: -6.9 to 122.0°F (-21.6 to 50°C) |
| Accuracy | ±1.5°F (±0.8°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Ranges | 5 to 95%RH |
| Accuracy | >70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH |
| Resolution | 0.1%RH |
| CO2 | |
| Measuring Ranges | 0 to 4,000 ppm |
| Accuracy | <999 ppm: ±40 ppm >1,000 ppm ?3000 ppm: ±5% rdg >3,000 ppm: ±250 ppm |
| Resolution | 1 ppm |
| CO | |
| Measuring Ranges | 0 to 1,000 ppm |
| Accuracy | ±(5% + 2 ppm) |
| Resolution | 1 ppm |
| O2 | |
| Measuring Ranges | 0 to 30% O2 |
| Accuracy | ±(1% + 0.2% O2) |
| Resolution | 0.10% |
| General Specifications | |
| Alarm Threshold | <18% O2 |
| Response Time | 1 second |
| Display | 4-digit dual LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1 second to 8 hours, 59 minutes and 59 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 85% |
| Dimensions | Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45mm) Humidity Probe Length: 7.8" (197mm) CO Probe Length: 5.9" (150mm) CO2Probe Length: 7.5" (190mm) O2Probe Length: 5.9" (150mm) |
| Weight | 0.8lb (350g) |
0 Reviews Hide Reviews Show Reviews
REED Instruments
REED Instruments R9910SD-NIST DATA LOGGING AIR QUALITY METER W/NIST CERT
$1,590.00
DescriptionREED Instruments, R9910SD-NIST, Data Logging Air Quality Meter with NISTR9910SD-NIST Includes Only:Data Logging Air Quality MeterHumidity ProbeCarbon
REED Instruments
REED Instruments R9910SD-KIT DATA LOGGING INDOOR AIR QUALITY METER WITH POWER ADAPTER AND SD CARD
$1,179.00
DescriptionREED, R9910SD-KIT, Data Logging Indoor Air Quality Meter Kit with Power Adapter and SD CardR9910SD-KIT Includes:R9910SD Data Logging Air Quality MeterRSD-16GB
REED Instruments
REED Instruments R4700SD DATA LOGGING ENVIRONMENTAL METER
$319.00
DescriptionR4700SD Includes Only:Data Logging Environmental MeterMulti-Function ProbeHard Carrying CaseBatteriesFeatures with optional accessories:
REED Instruments
REED Instruments SD-9901 AIR QUALITY METER, DATA LOGGER
MSRP:
$1,185.50
$1,095.00

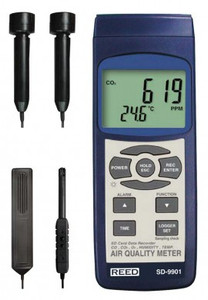

REED SD-9901 Description This indoor air quality (IAQ) datalogger measures Oxygen, Carbon Dioxide, Carbon Monoxide, Temperature and Humidity. The SD-9901 is capable of recording readings from 3...
