REED Instruments SD-1128 LIGHT METER/TYPE J/K THERMOMETER, DATA LOGGER, 100,000 LUX

(No reviews yet) Write a Review

MSRP: $268.50

$199.00

(You save $69.50 )

Brand: REED Instruments
SKU:: SD-1128
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED SD-1128 Description

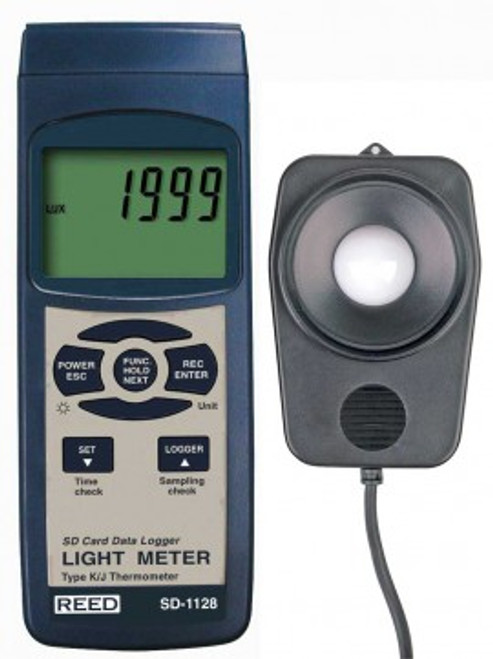

This SD series datalogging light meter has a wide measurement range up to 100,000 Lux (10,000 Foot-candles) and features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

Measures ambient light levels in Foot-candles or Lux
Photo diode and colour correction filters meet C.I.E. spectrum specifications
Contact temperature measurement with a type J/K thermocouple option
Temperature is measured in ?C or ?F
Real time data logger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Data hold and Min/Max functions
Optional PC software features live tracking via USB connection
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED SD-1128 Specifications

Measuring Ranges	Lux: 2,000, 20,000, 100,000 Fc: 200, 2,000, 10,000 Type K Temperature: -148.0 to 2372.0?F (-100.0 to 1300?C) Type J Temperature: -148.0 to 2192.0?F (-100.0 to 1200?C)
Accuracy	Lux: ?(4% + 2 dgt) Fc: <2,000: ?(4% rdg.+ 2 dgt) 2,000-10,000: ?(4% rdg.+ 20 dgt) Temp: ?(0.4% + 1.0?C (0.5?F))
Resolution	Lux: 1, 10, 100 Fc: 0.1, 1, 10 Temp: 0.1?F (0.1?C)
Response Time	<1 sec.
Sensor Type	Photo diode & color correction filter
Autoranging	Yes
Display	5-digit LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Auto Zero	Yes
Overrange Indicator	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory	Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off	Yes (after 10 mins/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA batteries or AC Adapter (optional)
Output	Yes (AC)
Battery Life	Sampling Time Dependent
PC Connectivity	USB Cable (optional)
Software	SW-U801-WIN Software (optional)
Software OS Compatibility	Windows XP / Vista / 7
Product Certifications	CE
Operating Temperature	32 to 122?F (0 to 50?C)
Storage Temperature	14 to 140?F (-10 to 60?C)
Operating Humidity Range	10-80%
Dimensions	7 x 2.7 x 1.9" (117 x 68 x 45mm)
Weight	17.3oz (489g)
