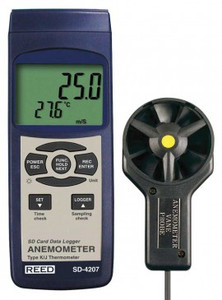

REED Instruments SD-4207-NIST ANEMOMETER/THERMOMETER, ROTATING VANE, DATA LOGGER W/NIST CERT

(No reviews yet) Write a Review

MSRP: $761.60

$624.00

(You save $137.60 )

Brand: REED Instruments
SKU:: SD-4207-NIST
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED SD-4207-NIST Description

This SD series datalogging thermo-anemometer measures air velocity, air temperature and has a built-in contact thermometer. The SD-4207 features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
Contact temperature measurement with type J/K thermocouple option
Thermistor sensor for fast air temperature readings
Low friction ball-bearing, rotating vane probe ensures high accuracy readings
Real-time data logger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Large, easy-to-read backlit LCD display
Data hold and Min/Max functions
Optional PC software features live tracking via USB connection
Tripod mount on probe and instrument for long-term monitoring
Low battery indicator and auto shut off

REED SD-4207 Specifications

Type	Vane
Measuring Ranges	fpm: 79 to 6890 m/s: 0.4 to 30 km/h: 1.4 to 126 mph: 0.9 to 78.3 knots: 0.8 to 68 knots Air Temperature: 32 to 122?F (0 to 50?C) Type K Temperature: -148.0 to 2372.0?F (-100.0 to 1300?C) Type J Temperature: -148.0 to 2192.0?F (-100.0 to 1200?C)
Accuracy	Air Velocity: ?(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot) Air Temperature: ?0.8?C (1.5?F) Temperature: ?(0.4% + 0.5?C (1?F))
Resolution	fpm: 1 m/s, km/h, mph, knot: 0.1 Temperature: 0.1?F/?C
Vane Diameter	2.8" (72mm)
Response Time	<1 sec.
Display	5-digit, Dual LCD Display
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory	Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off	Yes (after 10 mins/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA batteries or AC Adapter (optional)
Output	Yes (AC)
PC Connectivity	USB Cable (optional)
Software	SW-U801-WIN Software (optional)
Software OS Compatibility	Windows XP / Vista / 7
Product Certifications	CE
Operating Temperature	32 to 122?F (0 to 50?C)
Storage Temperature	14 to 140?F (-10 to 60?C)
Operating Humidity Range	10-80%
Dimensions	8 x 3 x 1.5" (203 x 76 x 38mm)
Weight	1.13lb (515g)
