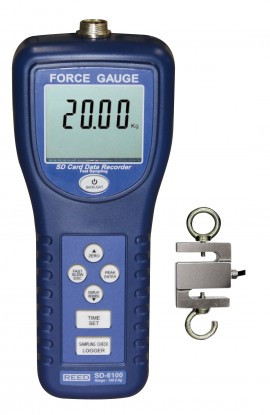

REED Instruments SD-6100 FORCE GAUGE, 100KG, DATA LOGGER
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED Instruments SD-6100 FORCE GAUGE, 100KG, DATA LOGGER
MSRP:
$766.10
Now:
$629.00
Was:
$795.00
(You save
$137.10
)
- Brand
- REED Instruments
- SKU:
- SD-6100
Description
This Gauge features a full-capacity tare (zero) capability, data recording in Peak hold or Normal mode, and Fast/Slow AD selection. The Easy-to-read, backlit LCD display is reversible-allowing you to read measurements regardless of direction. Includes separate load cell sensor with 2 hooks and cable.
Features
- Measures tension and compression
- Fast/Slow AD selection
- Data Record in Peak hold or Normal mode
- Full capacity tare (zero) capability
- Force is measured in kg, lb or Newtons
- Display is reversible so that it always legible regardless of direction
- Real time data logger with integral 4GB SD memory card (OPTIONAL)
- Just plug the SD card into the computer and it downloads directly to EXCEL
- RS-232 and USB computer interface
- Easy to read LCD with backlight
- Auto or manual power off
Included
- SD-6100 100kg Force Gauge Datalogger
- Separate Load Cell Sensor with 2 Hooks and Cable
- Carrying Case
Specification
| Measuring Capacity | 100.0 kg / 220.5 lb / 980.6 N |
| Resolution | 0.15 kg / 0.02 lb / 0.02 N |
| Accuracy | ±(5% + 2 dgt.) |
| Full Scale Deflection | Less than 1mm |
| Sampling Time | Normal: 1 second to 8 hours; |
| Peak hold | 10 to 500 ms |
| Power Supply | 6 x 1.5V UM3/AA batteries |
| Dimensions | 215 x 90 x 45mm (8.5 x 3.5 x 1.8") |
| Weight | 650 g (1.43 lb) |
