REED Instruments SD-9300 MULTIFUNCTION METER, DATA LOGGER|TestEquipmentUSA

REED Instruments SD-9300 MULTIFUNCTION METER, DATA LOGGER

(No reviews yet) Write a Review

MSRP: $333.10

$259.00

(You save $74.10 )

Brand

REED Instruments

SKU:

SD-9300

Availability:

DISCONTINUED

Description
0 Reviews

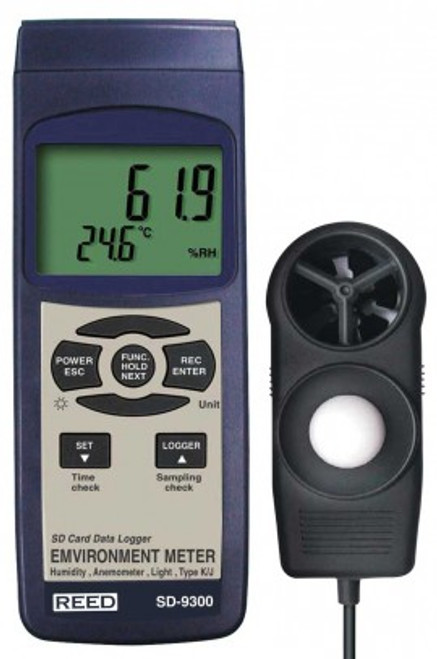

REED SD-9300 Description

This 7-in-1 environmental meter measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature measurements. The SD-9300 is also capable of sound level measurements with the SL-417 adapter (optional). Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

Measures air velocity/temperature, ambient temperature, relative humidity, light, and contact temperature
Measures sound level (dB) with SL-417 (sold seperately)
Air velocity is measured in m/s, ft/min, km/h, mph or knots
Light levels are measured in foot-candles or lux
Temperature is measured in ?C or ?F
Data hold and Max/Min functions
Real-time datalogger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Optional PC software features live tracking via USB connection
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED SD-9300 Specifications

Air Velocity
Measuring Ranges	0.4 to 30.0 m/s 1.4 to 128.0 km/h 0.9 to 78.3 mph 79 to 6890 fpm 0.8 to 68.0 knots
Accuracy	?2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot)
Resolution	0.1 m/s, km/h, mph, knot 1 fpm
Temperature
Measuring Ranges	Air Temperature: 32 to 122.0?F (0 to 50?C) Contact Temperature: Type K: -148 to 2372?F (-100 to 1300?C) Type J: -148 to 2192?F (-100 to 1200?C)
Accuracy	Air Temperature: ?0.8?C (?1.5?F) Contact Temperature: ?(0.4% +1?F(0.5?C))
Resolution	0.1?F/?C
Humidity
Measuring Range	5 - 95% RH
Accuracy	>70%RH: ?(3% rdg + 1%RH) <70%RH: ?3%RH
Resolution	0.1% RH
Light
Measuring Ranges	0 - 20,000 Lux (0 to 1,860 Ft-cd)
Accuracy	?(5% rdg ? 8 dgt)
Resolution	1 Lux / 0.1 Ft-cd
Sound (Optional, SL-417 Adapter Sold Separately)
Measuring Ranges	30 - 80dB 50 - 100dB 80 - 130dB
Accuracy	Basic Accuracy of ?3.5dB
Resolution	1 dB
General Specifications
Response Time	1 sec
Display	4-digit dual LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Zero Adjustment	Yes (for Light)
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory	Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off	Yes (after 10 mins/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA batteries or AC Adapter (optional)
Output	Yes
PC Connectivity	USB Cable (optional)
Software	SW-U801-WIN Software (optional)
Software OS Compatibility	Windows XP / Vista / 7
Product Certifications	CE
Operating Temperature	0 to 122?F (0 to 50?C)
Storage Temperature	14 to 140?F (-10 to 60?C)
Operating Humidity Range	10-85%
Dimensions	Instrument: 5.3 x 2.4 x 1.3" (135 x 60 x 33 mm) Probe: 4.1 x 1.8 x 1.1" (105 x 46 x 29 mm)
Weight	1.1lb (515g)
