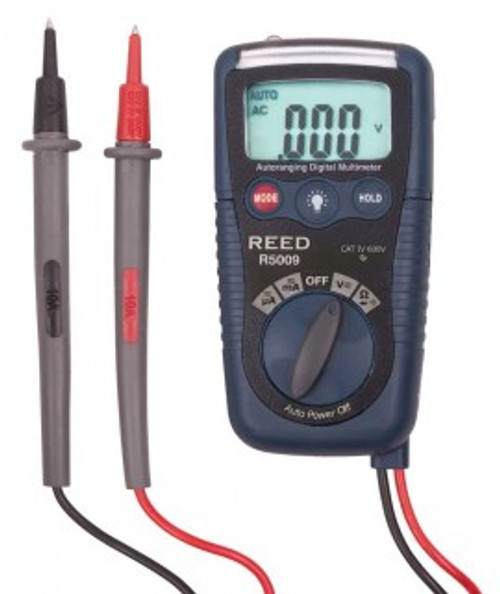

REED R5009 Compact Multimeter with NCV and Flashlight

(No reviews yet) Write a Review

$46.50

Brand: REED Instruments
SKU:: R5009
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED R5009 Description

This versatile pocket-sized multimeter includes a built-in flashlight and non-contact voltage detector. Practical and economical, the R5009 DMM measures AC and DC voltage and current, and resistance. The non-contact voltage detector quickly detects live voltage on electrical circuits found in residential, commercial and industrial buildings.

Features

Autoranging multimeter and non-contact voltage detector
Built-in flashlight
Diode check and continuity functions
Auto power off and data hold
Double molded housing and test leads
CAT III 1000V, CAT IV 600V safety rating

REED R5009 Specifications

AC/DC Voltage
Range	AC: 2, 20, 200, 600V DC: 200mV, 2, 20, 200, 600V
Accuracy	AC: 2,20V ?(1.0% rdg + 3 dgt.) 200, 600V ?(2.3% rdg + 10 dgt.) DC: mV?(0.5% rdg + 3 dgt.) V?(1.2% rdg + 3 dgt.)
Resolution	AC: 1, 10, 100mV, 1V DC: 0.1, 1, 10, 100mV, 1V
AC/DC Current
Range	200, 2000?A, 20, 200mA
Accuracy	AC: ?(2.5% rdg + 10d) DC: ?(2.0% rdg + 8d)
Resolution	0.1, 1, 10, 100?A
Resistance
Range	200?, 2, 20, 200k?, 2, 20M?
Accuracy	200.0? ?(0.8% rdg + 5d), 2.000, 20.00, 200.0k? ?(1.2% rdg + 5d) 2.000M? ?(5.0% rdg + 5d) 20.00M? ?(10.0% rdg + 5d)
Resolution	0.1, 1, 10, 100?, 1, 10k?
General Specifications
Range Selection	Autoranging
Display	2,000 count LCD display
Display Hold	Yes
Relative Mode	Yes
Diode Test	Yes
Continuity Check	Audible signal if resistance ?150?
Non-Contact Voltage Detector	Yes
Built-in Flashlight	Yes
Auto Power Off	Yes (after 15 minutes)
Power Supply	2 x AAA
Low Battery Indicator	Yes
Replaceable Test Leads	No
Overvoltage Category	CAT III 1000V, CAT IV 600V
Product Certifications	CE
Operating Temperature	32 to 104?F (0 to 40?C)
Storage Temperature	14 to 122?F (-10 to 50?C)
Dimensions	4.1 x 2.2 x 1.3" (104 x 55 x 32.5mm)
Weight	5.2oz (145g)
