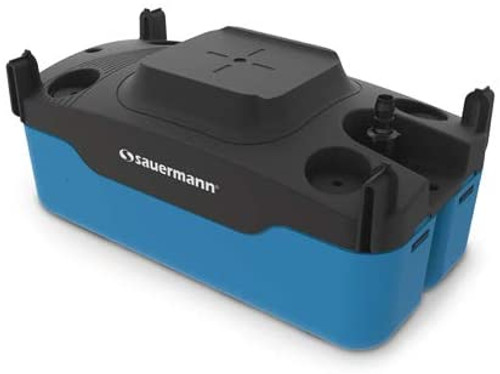

Sauermann Centrifugal tank pump with intergrated barb end check (capacity 0.50 gal) SI83UL03UN23
- Brand
- Sauermann
- SKU:
- SI83UL03UN23
- Availability:
- In Stock
Sauermann Centrifugal tank pump with intergrated barb end check (capacity 0.50 gal) SI83UL03UN23
- VERY HIGH PEROFOMANCES - 145 gph/h (550 l/h) flow rate, Shut-off head: 22’ (6.7 m), ½ gallon (2 l) tank capacity
- QUICKER & EASIER INSTALLATION - Designed for intuitive installation, Can be floor-mounted, wall-mounted, or ceiling suspended, 6 inlet options for unmatched versatility Ø1 3/16’’ (20.6 mm): 4 on top, & 1 on either side for low condensate entry, Simple rod mounting system makes leveling easy, Low profile: H 5’’ 1/16 (129 mm), Leveling & installation instructions in the Si-83 Mobile App (available for both iOS and Android devices)
- QUICKER & EASIER MAINTENANCE - No need to remove the pump from installation to clean, Removable check valve, Replacement for the Si-1801 and Si-1805, Maintenance calendar in the Smartphone App (available for both iOS and Android devices)
- EXCEPTIONAL DURABILITY AND RELIABILITY - NEW float design, Stainless steel motor shaft, Tolerates both high-temperature and acidic condensates (pH >2.5) produced by gascondensing boilers
- KIT CONTENT INCLUDES - Includes a rubber adaptor & a built-in safety switch, Centrifugal pump with ½ gallon (2 l) tank, Integrated barb end check valve, Ø ext. 3/8” (10 mm), 6’ (1.8 m) power cord, Built-in safety switch, 3’ (1 m) wires, bare ends, Roll of tubing 20’ (6 m), int. Ø 3/8”, Adaptor int. Ø 5/8”- 3/4”- 1” - 1 1/4”- 1 1/2” (15/17 mm - 20 mm - 24/25 mm - 32 mm - 40 mm), 2 screws, 2 plugs
-
Kit contents :
- One-piece centrifugal pump with ½ gallon (2 l) tank
- Integrated barb end check valve, Ø ext. 3/8” (10 mm)
- 6’ (1.8 m) power cord, US plug
- Built-in safety switch, 3’ (1 m) wires, bare ends
- Adaptor int. Ø 5/8”- 3/4”- 1” - 1 1/4”- 1 1/2” (15/17 mm - 20 mm - 24/25 mm - 32 mm - 40 mm)
- 2 screws, 2 plugs
Technical Specifications:
High lift: 22’ (shut-off head), Max. flow rate (gph/h) 145 gph (550 l/h), Tank capacity ½ gallon (2 l), Mains supply SI83UL03UN12: 120 V~ 60 Hz - 84 W - 1.7 A, SI83UL03UN23: 230 V~ 60 Hz - 126 W - 1.55 A, Max. discharge head 21’ (flow rate: 15 gph), 6.4 m (57 l/h), Shut-off head (flow rate 0) 22’ (6.7 m), Sound level in the application at, 1m, ≤ 45 dBA (Measured in Sauermann acoustic lab, pump operating with water), Max. condensate temperature 131°F (55°C), 176°F (80°C) short peaks 10 minutes, Max. condensate acidity pH > 2.5 (Gas condensing boilers), Pump Weight (with packaging) 5.3 lbs (2.4 kg), Box dimensions L 12’’ 3/8 x W 5” 15/16 x H 8” 15/16, (L 315 mm x W 151 mm x H 227 mm).
