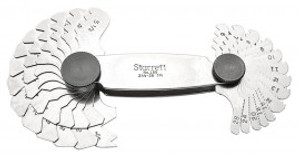

Starrett 474 SCREW PITCH GAGE- 4-80 TPI- 28 LEAVES

$42.08
SKU:
474
Brand:
Quantity:

Product Description

474 Screw Pitch Gage, 4-80 TPI, 28 Leaves

The Starrett 474 Screw Pitch Gage includes a substantial steel case with a number of folding leaves at both ends.

FEATURES

  •  Features 28 leaves, 4 to 80 TPI range, with locking device and 11-1/2 and 27 pipe thread pitches


SPECIFICATIONS

  •  Range (TPI)4–80
  •  Locking DeviceYes
  •  MaterialSteel
  •  Number of Leaves28


PARTS

Member of Kit

Item #DescriptionPart No.QtyInformation
1 CASE, BACK 09275-0 1
2 LEAF, 5 PITCH 09273-5 1
3 LEAF, 10 PITCH 09273-10 1
4 LEAF, 16 PITCH 09273-16 1
5 CASE, FRONT 09274-0 1
6 STUD 05857-0 2
7 NUT, .125-40 05858-0 2
8 SPRING,.214X.238X.219X.0120X4 05859-0 2
9 LEAF, 4 PITCH 09273-4 1
10 LEAF, 4 1/2 PITCH 09273-4 1/2 1
11 LEAF, 6 PITCH 09273-6 1
12 LEAF, 7 PITCH 09273-7 1
13 LEAF, 8 PITCH 09273-8 1
14 LEAF, 9 PITCH 09273-9 1
15 LEAF, 11 PITCH 09273-11 1
16 LEAF, 11 1/2 PITCH 09273-11 1/2 1
17 LEAF, 12 PITCH 09273-12 1
18 LEAF, 13 PITCH 09273-13 1
19 LEAF, 14 PITCH 09273-14 1
20 LEAF, 18 PITCH 09272-18 1
21 LEAF, 20 PITCH 09272-20 1
22 LEAF, 24 PITCH 09272-24 1
23 LEAF, 27 PITCH 09272-27 1
24 LEAF, 28 PITCH 09272-28 1
25 LEAF, 32 PITCH 09272-32 1
26 LEAF, 36 PITCH 09272-36 1
27 LEAF, 40 PITCH 09272-40 1
28 LEAF, 44 PITCH 09272-44 1
29 LEAF, 48 PITCH 09272-48 1
30 LEAF, 56 PITCH 09272-56 1
31 LEAF, 64 PITCH 09272-64 1
32 LEAF, 72 PITCH 09272-72 1
33 LEAF, 80 PITCH 09272-80 1
