WINTER PEC0203 PEC 4'' SS/SS, 0/60 PSI/KPA, 1/2'' NPT BTM, 2 x SPST CONTACTS

Winters PEC0203 Offers

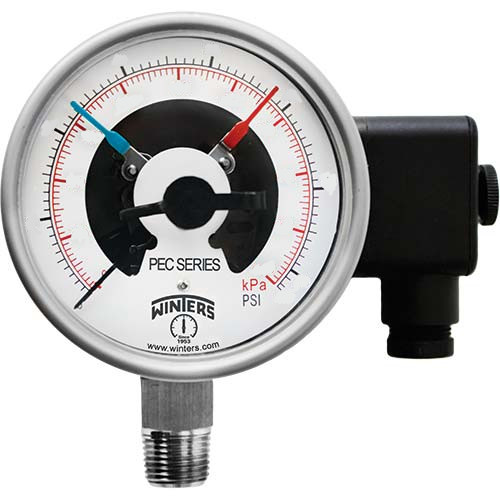

With the Winters PEC0203 Premium Stainless-Steel Pressure Gauge with electrical contacts, you can take precise measurements and enjoy electrical switching with ease. The gauge features a 4" (100 mm) dial for an easy view of the readings, and the plastic connection box with terminal block offers electrical contacts that are rated to 1 A at 220 to 380 VAC.

Features

• Ideal for commercial and industrial situations where electrical switching is required with local indication
• 4" (100 mm) dial with a polycarbonate lens offers a clear view of the readings
• Silicone-fillable stainless-steel gauge provides accurate measurements
• Constructed with 304 stainless-steel case, socket and movement as well as a 316 stainless-steel bourdon tube for durability
• Painted black aluminum pointer offers precise readings
• Designed with an over-pressure limit of 25% for pressures up to 1,450 psi (9,998 kPa) and 15% for pressures over 1,450 psi (9,998 kPa)
• Outfitted with a Buna N fill plug
• Offers a maximum working pressure of 75% of the full scale value
• Built with an IP65-rated enclosure for protection
• Electrical contacts are rated up to 1 A at 220 to 380 VAC

Winters PEC0203 Specifications
