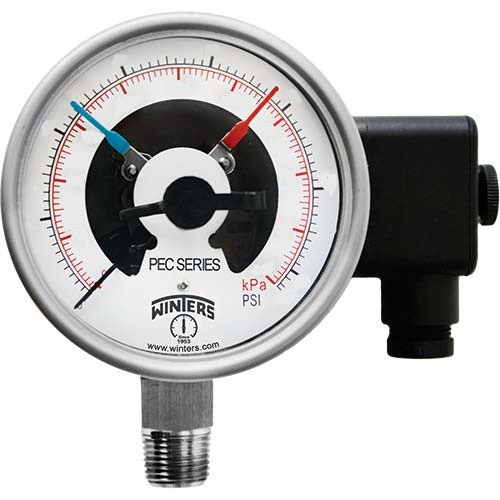

WINTER PEC0207 PEC 4'' SS/SS, 0/300 PSI/KPA, 1/2'' NPT BTM, 2 x SPST CONTACTS
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PEC0207 PEC 4'' SS/SS, 0/300 PSI/KPA, 1/2'' NPT BTM, 2 x SPST CONTACTS
$379.83
- Brand
- U.S. Winter instruments
- SKU:
- PEC0207
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, PEC0207, PEC Premium Stainless Steel Pressure Gauge, 0/300 Psi/kPa
Applications:
- Commercial and industrial applications where electrical switching is required with local indication
- Pump and compressor controls
- Hydraulic and pneumatic industries
Features:
- 4? dial
- Silicone fillable stainless steel gauge
- Independently adjustable electrical contacts
- Bottom connection
- Restricted orifice standard
- ?1% accuracy
- Electrical contacts rated up to 1 amp at 220-380 Vac
- Contact settings adjustable with fitted key (included)
- ASME B40.100 compliant
- CRN registered
| Case Size | 4? (100mm) | |
| Case | 304 SS | |
| Lens | Polycarbonate | |
| Socket | 304 SS | |
| Connection | 1/2? NPT | |
| Bourdon Tube | 316 SS | |
| Movement | 304 SS | |
| Pointer | Aluminum, painted black | |
| Welding | Laser welded case to socket | |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa),15% for pressures over 1,450 psi (9,998 kPa) | |
| Fill Plug | Buna N (silicone rubber option) | |
| Lens Ring Gasket | Silicone Rubber | |
| Working Pressure | Maximum 75% of full scale value | |
| Ambient/Process Temperature | -4?F to 150?F (-20?C to 65?C)-40?F to 250?F (-40?C to 120?C) | |
| Accuracy | 1% | |
| Enclosure Rating | IP65 | |
| Electrical Connection | Plastic connection box with terminal block (Hirschmann-type) | |
| Contact Rating | 0.7 - 1 amp; 220 - 380 Vac (snap action contact) |
