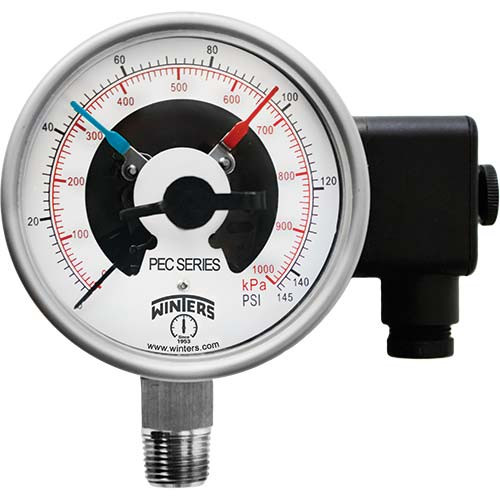

WINTER PEC0232 PEC 4'' SS/SS, 30"/0/100 PSI/KPA, 1/2'' NPT BTM, 2 x SPST CONTACTS
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PEC0232 PEC 4'' SS/SS, 30"/0/100 PSI/KPA, 1/2'' NPT BTM, 2 x SPST CONTACTS
$482.36
- Brand
- U.S. Winter instruments
- SKU:
- PEC0232
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, PEC0232, PEC Premium Stainless Steel Pressure Gauge with Electrical Contacts, 30"/0/100 PSI/KPA
Features:
- 4? dial
- Silicone fillable stainless steel gauge
- Independently adjustable electrical contacts
- Bottom connection
- Restricted orifice standard
- ?1% accuracy
- Electrical contacts rated up to 1 amp at 220-380 Vac
- Contact settings adjustable with fitted key (included)
- ASME B40.100 compliant
- CRN registered
Applications:
- Commercial and industrial applications where electrical switching is required with local indication
- Pump and compressor controls
- Hydraulic and pneumatic industries
| Case Size | 4? (100mm) | |
| Connection | 1/2" Bottom | |
| Scale | 30"/0/100 psi/kPa | |
| Case | 304 SS | |
| Lens | Polycarbonate | |
| Socket | 316 SS | |
| Connection | 1/2? NPT | |
| Bourdon Tube | 316 SS | |
| Movement | 304 SS | |
| Pointer | Aluminum, painted black | |
| Welding | Laser welded case to socket | |
| Over-pressure Limit |
| |
| Fill Plug | Buna N (silicone rubber option) | |
| Lens Ring Gasket | Silicone rubber | |
| Working Pressure | Maximum 75% of full scale value | |
| Ambient/Process Temperature |
| |
| Accuracy | ?1% | |
| Enclosure Rating | IP65 | |
| Electrical Connection | Plastic connection box with terminal block (Hirschmann-type) | |
| Contact Rating | 0.7 ? 1 amp; 220 ? 380 Vac (snap action contact) | |
| No. of Contacts |
|
