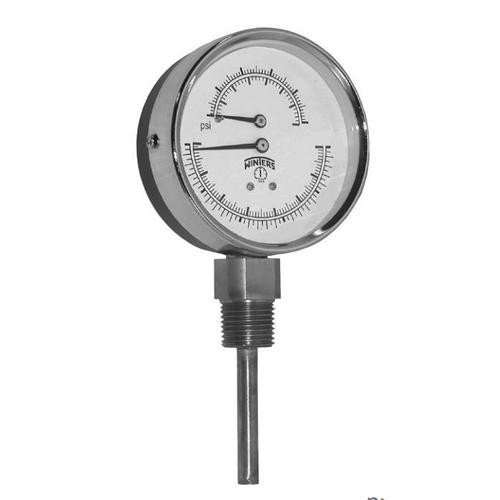

WINTER TTD410 TRID 2.5" 0-75 PSI & 70/320 F & 20/160 C 1/4" BACK 1" STEM LENGTH
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER TTD410 TRID 2.5" 0-75 PSI & 70/320 F & 20/160 C 1/4" BACK 1" STEM LENGTH
$54.98
- Brand
- U.S. Winter instruments
- SKU:
- TTD410
- UPC:
- 6.28311E+11
- Availability:
- In Stock
TTD Tridicator, 0/75 PSI, 70/320deg F, 1/4" NPT Back
Features:
- Measures both pressure and temperature on the same dial
- 2.5" (63mm) dials
- Dual scale (?F and ?C)
- Back or bottom connection
- Brass wetted parts
- 1" (25mm) stems
- Multiple pressure and temperature ranges available
- Can be used with TST thermowells
- Ranges are complian
| Dial | 2.5" (63mm) aluminum, painted white |
| Case | Steel, painted black |
| Lens | Acrylic, threaded |
| Stem | Brass |
| Socket | Brass |
| Tube | Phosphor bronze |
| Movement | Brass and phosphor bronze |
| Sensing Element | Temperature: Bi-metallic coil; Pressure: Bourdon tube |
| Pointer | Aluminum, anodized black |
| Welding | Tin-alloy solder |
| Pressure Limit | 75% of full scale range |
| Ambient Temperature | 23?F to 122?F (-5?C to 50?C) |
| Process Temperature | 75% of full scale range |
| Accuracy | Pressure: ?3-2-3%; Temperature: ?3% of full scale |
| Enclosure Rating | IP50 |
| Range | 0-75psi/kPa, 70?F to 320?F & 20?C to 160?C |
| Connection | 1/4" NPT, Back |
| Stem Length | 1" (25mm) |
