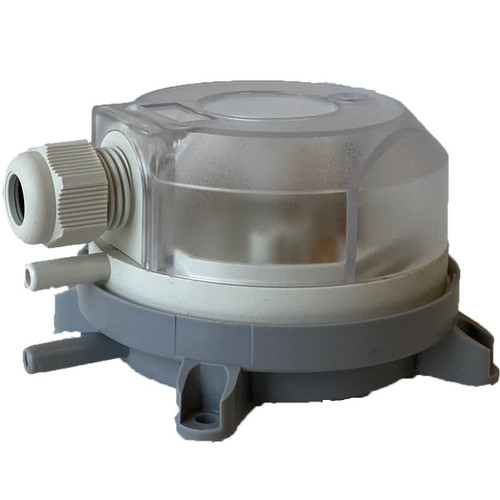

WINTER WPS2500 WPS 500/2500 PA SPDT 5/16? OUTER & ?? INNER DIA TUBING
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER WPS2500 WPS 500/2500 PA SPDT 5/16? OUTER & ?? INNER DIA TUBING
$57.47
- Brand
- U.S. Winter instruments
- SKU:
- WPS2500
- UPC:
- 628311323269
- Availability:
- In Stock
Winters, WPS2500, WPS Commercial Differential Pressure Switch, 500/2500 PA Range
Features:
- Excellent solution in BAS and HVAC applications requiring monitoring and control
- Low pressure differential switch for monitoring pressure, vacuum and differential pressure of air and other non combustible, non aggressive gases
- Pressure indicating adjustment knob allows for simple field changes without the need of a pressure gauge
- Pressure ranges in both Inches of Water (and Pascals), from 0.08 to 16.0 (20-4,000)
- Single-pole double-throw (SPDT) switch type with 0.01A 250 VAC output
- The compact size allows for hassle-free installation in small areas
- CE, RoHS & REACH compliant
Applications:
- Field applications include: monitoring air filters and ventilators, overheating protection for fan heaters and controlling air and fire protection flaps, protection for heat exchangers, flow in ventilation ducts and controlling
| Set Point Range | 500-2500 Pa |
| Housing Material | Gray colour Polyamide 6.6 plastic |
| Window Cover Material | Frosted Polystyrene resin |
| Deadband Accuracy | +/- 15% of upper and lower pressure ratings |
| Pressure Connection | 2 x plastic pipe connection, 6.0mm (1/4?) external diameter, labelled P1 & P2 |
| Electrical Connection | Flat plug 6.3mm x 0.8mm or push-on screw terminals with PG-11 or M20x1.5 cable strain relief |
| Wetted Partst | Silicone based diaphragm, tempered at 392?F (200?C) |
| Set Point Adjustment | Field adjustable knob |
| Contact Rating | 1.0A 250VAC output, 0.1A 24VDC (low voltage version) |
| Number of Contacts | Single-pole double-throw (SPDT) |
| Maximum Operating Pressure Temperature | 1.45 psi (10 kPa) |
| Ambient/Process Temperature | -4?F to 185?F (-20?C to 85oC) |
| Storage Temperature | -40?F to 185?F (-40?C to 85?C) |
| Enclosure Rating | IP54 |
| Approvals | CE, RoHS & REACH compliant |
| Typical Life | Over 10^6 switching operations |
| Weight | 150g with cover, 110g without cover |
| Mounting Position | Vertical installation with pressure connections pointing downwards |
