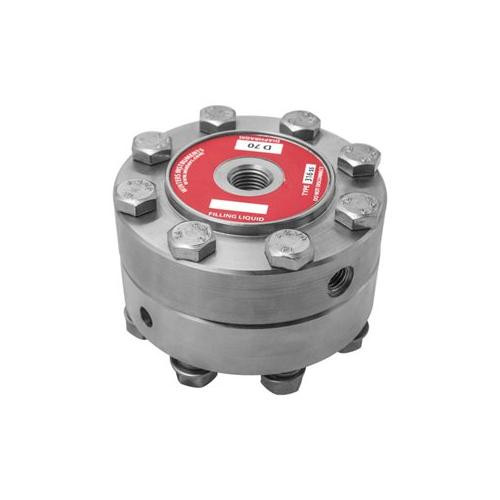

Winters 1/2" NPT 316L SS TOP, MONEL DIAPHRAGM D70952M
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1/2" NPT 316L SS TOP, MONEL DIAPHRAGM D70952M
$506.73
- Brand
- U.S. Winter instruments
- SKU:
- D70952M
- UPC:
- 6.28E+11
Winters, D70952M, D70 Heavy Duty 2-Piece Industrial Seal, 316L SS, 1/2"; NPTF, Monel diaphragm.
Features:
- Two piece construction and designed to withstand even the most severe process applications
- "Continuous use" seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- FKM diaphragm is highly recommended for applications less than 10 psi
- ASME B40.100 complian
Applications:
- Where the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter
| Housing | 316L SS |
| Diaphragm | Monel |
| Construction | Two piece construction |
| Gasket Material | Buna N |
| Connection | 1/2" NPTF |
| Process Temperature | -22?F to 212?F (-30?C to 100?C) |
