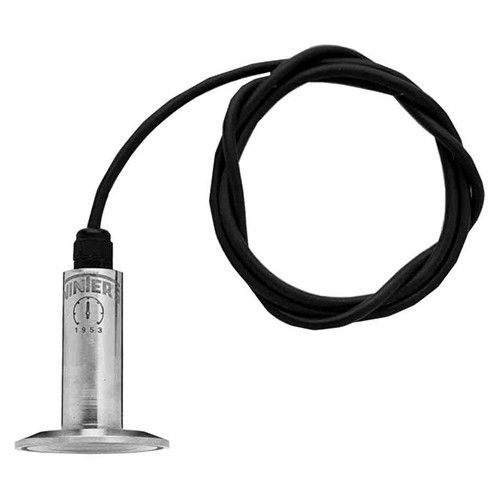

Winters 1.5" SANITARY TRANSMITTER 0-300 PSI. LST15300
$3,314.20
- Brand
- U.S. Winter instruments
- SKU:
- LST15300
Description
Applications:
- Ideal for applications where sanitary conditions are of high priority (i.e. dairy, food processing, pharmaceutical, etc.)
Description & Features:
- Constructed of 316-grade welded stainless steel, NEMA 4X rated
- 3A approved
- Excellent accuracy rating of +/-0.25% full scale output
- Available with a 0.5" (13mm) to 5" (127mm) Tri-Clamp
- Pressure ranges up to 1,000 psi
- RoHS compliant
- 1 year warranty
Specification
Electrical Output Signal | 4-20mA, 2 wire |
Electrical Connector | 10 ft (3m) Belden 9536 flying wire |
Excitation Voltage | 8-38 Vdc |
Accuracy | +/-0.25% ANSI/ASME Grade 3A |
EMI/RFI Enclosure Rating | Meets and exceeds CE standards |
Zero/Span | Optional |
Wetted Parts/Connection | 316L SS Tri-Clamp |
Housing | 316 SS |
Enclosure Rating | NEMA 4X (IP65) |
Proof Pressure | 2X full scale |
Burst Pressure | 5X full scale (maximum 3,000 psi) |
Normal Operating Temperature Range | -40°F to 200°F (-40°C to 93°C) |
Compensated Temperature Range | 0°F to 170°F (-18°C to 77°C) |
Temperature Effect Range Zero/Span | ?+/-1.5% FSO per over compensated range |
Long Term Stability | ?0.25%/yr |
Weight | 10 oz (283g) |
