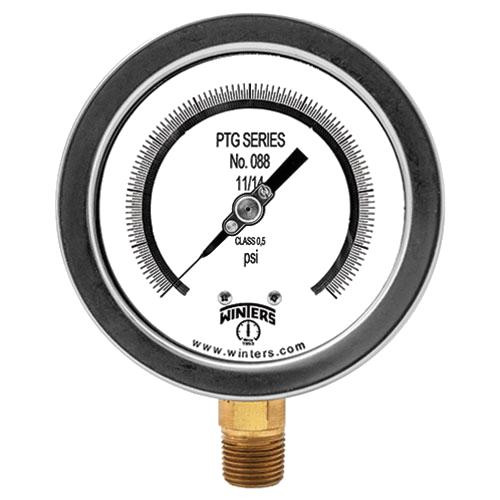

Winters 4" TEST GAUGE 0-300PSI 1/4"NPT BTM PTG4006
$684.30
- Brand
- U.S. Winter instruments
- SKU:
- PTG4006
Winters, PTG4006, PTG 4" Dial, 0/300 PSI, 1/4" NPT Bottom SS Pressure Test Gauge
Features:
- Highly accurate: ±0.50% for 4" (100mm) complete with calibration certificate traceable to NIST standards
- Mirrored anti-parallax dial
- Knife-edge pointer
- Protective carrying and storage case available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications:
- Designed to be used where accuracy and repeatability are of prime importance
- Used in laboratories and instrument testing facilities
Dial Size | 4" (150mm) |
Range | 0/300 PSI |
Case | AISI 304 SS |
Lens | Polycarbonate |
Ring | AISI 304 SS |
Socket | 316 SS |
Connection | 1/4" NPT bottom |
Bourdon Tube | 316 SS |
Movement | AISI 304 SS temperature compensated |
Pointer | Aluminum, anodized black, micrometer adjustable, knife-edge |
Welding | Silver alloy (TIG for 316 SS wetted parts) |
Over-Pressure Limit | 30% of full scale value |
Working Pressure | Maximum 75% of full scale value |
Calibration Conditions | 68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure |
Ambient/Process Temperature | -4°F to 150°F (-20°C to 65°C) |
Accuracy | ±0.25% ANSI/ASME Grade 3A |
Enclosure Rating | IP65 |
