Winters 4WPS SWITCH, AL, NEMA 4X, .06-6PSI, SPDT, ADJ, TERM BLOCK, 1/4"NPT 4WPS103VN4FX
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 4WPS SWITCH, AL, NEMA 4X, .06-6PSI, SPDT, ADJ, TERM BLOCK, 1/4"NPT 4WPS103VN4FX
$1,082.48
- Brand
- U.S. Winter instruments
- SKU:
- 4WPS103VN4FX
Winters, 4WPS103VN4FX, 4WPS .06-6PSI 1/4" NPT Low Pressure Diaphragm Pressure Switch
Applications:
- Suitable for pumps and compressor monitoring, HVAC systems and general industrial applications
Description & Features:
- Piston-type pressure switch
- Vac to 500 psi pressure range
- SPDT switch
- Fixed or adjustable deadband
- Simple set point adjustment
- Anodized aluminum construction with Buna N wetted parts
- +/-2% of the adjustable range accuracy
- NEMA 4, IP65 enclosure rating (NEMA 4X optional)
- UL, CSA approved and PED compliant
- CRN registered
- 1 year warranty
| Housing | Anodized aluminum |
| Accuracy | +/-2% of the adjustable range |
| Pressure Connection | 1/4"NPTF |
| Electrical Connection | 1/2"NPTF conduit connection with screw terminals |
| Wetted Parts | Aluminum and Buna N (TeflonO-ring or Vitondiaphragm optional) |
| Set Point Adjustment | Self locking adjustment nut |
| Deadband | Fixed or adjustable |
| Contact Rating | 10 amps @ 125/250 Vac3 amps @ 480 Vac |
| No. of Contacts | One, SPDT |
| Ambient Temperature | -20°F to 165°F (-29°C to 74°C) |
| Enclosure Rating | NEMA 4, IP65 (NEMA 4X optional) |
| Approvals | UL, CSA, CRN, PED 97/23/C compliant |
| Weight | 1.5 lbs (680 grams) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

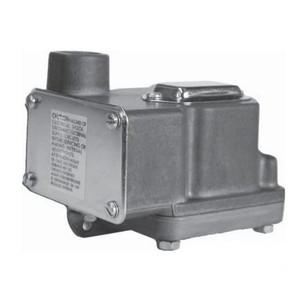

Winters 4WPS SWITCH, AL, NEMA 4, .06-6PSI, SPDT, ADJ, TERM BLOCK, 1/4"NPT 4WPS103VN4
