Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-600PSI, SPDT, ADJ, 1/4"NPT 5WPS0600AFX
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-600PSI, SPDT, ADJ, 1/4"NPT 5WPS0600AFX
$2,423.71
- Brand
- U.S. Winter instruments
- SKU:
- 5WPS0600AFX
- UPC:
- 6.28E+11
Winters, 5WPS0600AFX, 5WPS 0-600 PSI 1/4" NPT NEMA 4X/12/13 Differential Pressure Switch
Applications:
- Pumping stations, remote locations, ideal for High-Low level control (requiring dual elements)
Description & Features:
- Bellows actuated "frictionless" switching mechanism
- 15 to 5,000 psi pressure range
- One or two SPDT switch
- Adjustable deadband
- Cast aluminum construction with stainless steel wetted parts
- NEMA 4X, 12 & 13 enclosure rating
- UL recognized
- 1 year warranty
| Housing | Cast aluminum |
| Sensitivity | +/-0.5% of range (for one SPDT switch) |
| Pressure Connection | 1/4" NPTF |
| Electrical Connection | 1/2" NPTF conduit connection |
| Wetted Parts | SS |
| Set Point Adjustment | Screw type, field adjustable |
| Deadband | Fixed (adjustable option available) |
| Contact Rating | 15 amps @ 125/250/480 Vac |
| No. of Contacts | One or two SPDT |
| Ambient Temperature | -40°F to 180°F (-40°C to 82°C) |
| Enclosure Rating | NEMA 4X, 12 & 13, hermetically sealed switch option available |
| Approvals | UL recognized (switch only) |
| Weight | Approx. 3 lbs |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-200PSI, SPDT, ADJ, 1/4"NPT 5WPS0200AFX
$2,168.55
Winters 5WPS0200AFX OffersFeatures
Bellows actuated ?rictionless?witching mechanism
15 to 5000 psi pressure range
One or two SPDT switch
Adjustable deadband available
Cast aluminum...
U.S. Winter instruments
Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-60PSI, SPDT, ADJ, 1/4"NPT 5WPS0060AFX
$3,133.55
Winters, 5WPS0060AFX, 5WPS 0-60 PSI 1/4" NPT NEMA 4X/12/13 Differential Pressure SwitchApplications:Pumping stations, remote locations, ideal for High-Low level control (requiring dual...
U.S. Winter instruments

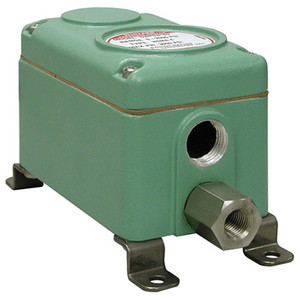

Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-100PSI, SPDT, ADJ, 1/4"NPT 5WPS0100AFX
