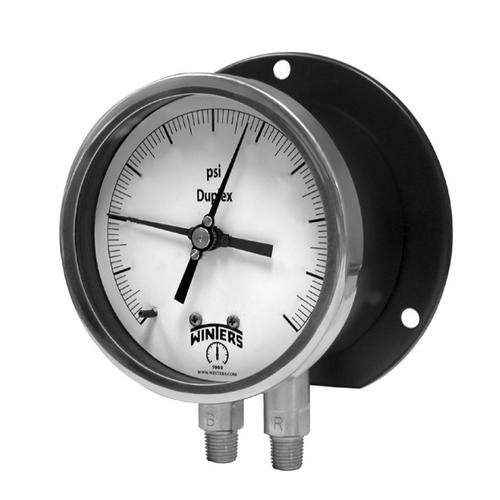

Winters 6" BRASS DUPLEX 0-100 PSI NPT PDX8094
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 6" BRASS DUPLEX 0-100 PSI NPT PDX8094
$1,422.00
- Brand
- U.S. Winter instruments
- SKU:
- PDX8094
- UPC:
- 6.28311E+11
Description:
PDX8094, PDX 0/100 PSI Bottom Duplex Pressure Gauge, 316 SS Socket
Features:
- Heavy duty, highly accurate, aluminum case
- Two separate bourdon tubes and pointers
- One red and one black pointer
- ASME B40.100 compliant
- CRN registered
Applications:
- Comparing two separate process pressures on the same gauge
- Utilized on pump and filter applications
Specification
| Dial | 6" (150mm), 0/100 PSI |
| Case | Aluminum, painted black |
| Front Flange | SS |
| Back Flange | Black steel |
| Lens | Glass |
| Ring | 4.5" (115mm): SS |
| Socket | Brass |
| Connections | 1/4" Bottom |
| Scale | PSI only |
| Bourdon Tubes | Phosphor bronze, independent, matched |
| Movement | Brass |
| Pointer | Aluminum, micrometer |
| Welding | TIG argonarc for SS internals |
| Over-Pressure Limit | 30% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | +/-1% ANSI/ASME Grade 1A |
