Winters PFH SERIES 4" 30/0/300 PSI/KPA BRASS 1/2" CB 1.5% ACC PFH1292
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PFH SERIES 4" 30/0/300 PSI/KPA BRASS 1/2" CB 1.5% ACC PFH1292
$145.28
- Brand
- U.S. Winter instruments
- SKU:
- PFH1292
- UPC:
- 6.28311E+11

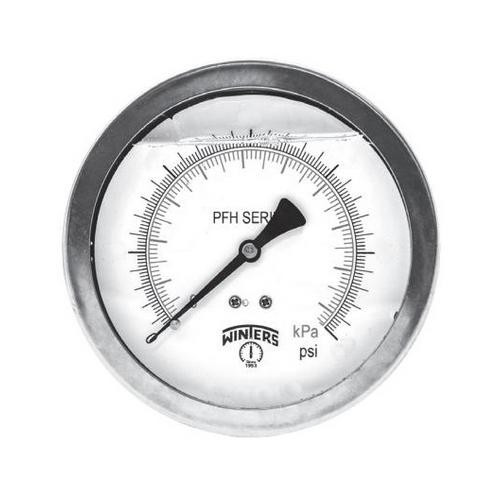

Winters, PFH1292, 4" Dual Scale Gauge, 1/2" Back (LB), 30"/0/300 Psi/kPa
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. Use where harmful vibration and pulsation are present.
Features:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Brass internals
- Engineered restricted orifice available to protect against additional pressure spikes on dual scale
- Polished crimp-on bezel
- Ventable fill plug
- Dual scale
- ASME B40.100 compliant (EN837-1 compliant)
- CRN registered
| Scale | Dual |
| Dial Size | 4" (100 mm) |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, crimp-on |
| Connection | 1/2" Back (LB) |
| Fill Liquid | Glycerin standard |
| Pressure Range | 30"/0/300 psi/kPa |
| Pointer | Aluminum, anodized black |
| Welding | Silver alloy |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa); 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N |
| Fill Plug | Buna N, ventable with brass plunger |
| Lens Ring Gasket | Buna N |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Accuracy | ? 1.5% of full scale value |
| Enclosure Rating | IP65 |
