Winters PLT TEST KIT, 2.5" DIAL, 35 INWC & 20 OZ/IN2, BRASS INTERNALS, LM C/W HOSE, NIPPLE, HOSE & CASE PLT35
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PLT TEST KIT, 2.5" DIAL, 35 INWC & 20 OZ/IN2, BRASS INTERNALS, LM C/W HOSE, NIPPLE, HOSE & CASE PLT35
$138.06
- Brand
- U.S. Winter instruments
- SKU:
- PLT35
- UPC:
- 6.28311E+11
Description
Winters, PLT35, Low Pressure Test Kit, 2.5", 0/35" water / 0/20 oz/in2
Features:
- Low pressure gauge built into protective case for ease in use and durability
- Sensitive diaphragm gauge available in 3 pressure ranges
- Re-zero with external recalibration screw
- Easier to use than a manometer
- Plastic blow molded case for added durability
- Sleek design featuring secure latch
- Facilitates safe handling
- ASME B40.100 compliant
- CRN registered
Applications:
- Hydraulic shoring commonly used in long wall mining
Specification
| Dial | 2.5" (63mm), white aluminum with red and black markings |
| Case/Ring | Steel, painted black |
| Lens | Polycarbonate |
| Connection | Brass hose barb (1/4") (gear clamp included) |
| Diaphragm Element | Phosphor bronze |
| Movement | Engineering plastic upper and lower plate with brass pinion and sector, with zero adjustment* |
| Ambient Temperature | -4?F to 150?F (-20?C to 65?C) |
| Accuracy | +/-3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Tube Nipple | Rubber: 0.256" (6.5mm) ID x 0.472" (12mm) OD x 1.339" (34mm) 1/4" NPTM x 1/4" hose barb |
| Case Material | Plastic blow molded: 5.75" x 8.25" (146mm x 210mm) |
| Hose Tube | Rubber: 3' (91cm) in length; 0.197" (5mm) ID x 0.315" (8mm) OD |
| Accessory | Easy to install clamp |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters PLT TEST KIT, 2.5" DIAL, 15 INWC & 8 OZ/IN2, BRASS INTERNALS, LM C/W HOSE, NIPPLE, HOSE & CASE PLT15
$138.06
Winters, PLT15, Low Pressure Test Kit, 2.5", 0/15" water / 0/8 oz/in2Features:Low pressure gauge built into protective case for ease in use and durabilitySensitive diaphragm gauge available in 3...
U.S. Winter instruments
Winters PLT TEST KIT, 2.5" DIAL, 100 INWC & 58 OZ/IN2, BRASS INTERNALS, LM C/W HOSE, NIPPLE, HOSE & CASE PLT100
$138.06
Winters, PLT100, Low Pressure Test Kit, 2.5", 0/100" water / 0/58 oz/in2Features:Low pressure gauge built into protective case for ease in use and durabilitySensitive diaphragm gauge available in 3...
U.S. Winter instruments

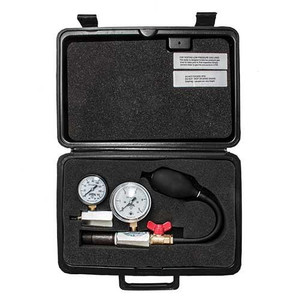

Winters PGWT, 2.5" & 2" STEEL CASE, 0/5 & 0/160PSI, LM CONN., RUBBER HOSE C/W HAND PUMP, VALVE, CONNECTORS PGWT0100
