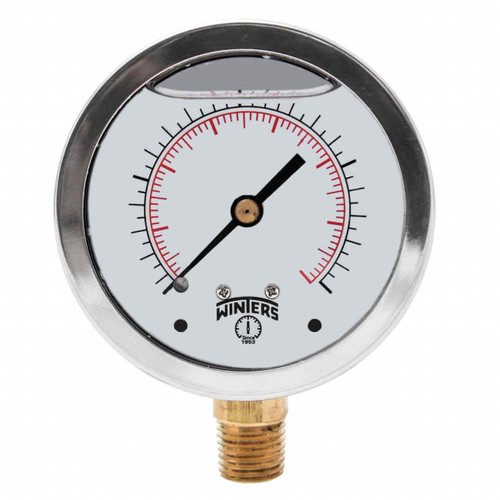

Winters QUALITY FILLED 4"x1/2"NPT BTM 0/160 PSI/KPA PFQ1246
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters QUALITY FILLED 4"x1/2"NPT BTM 0/160 PSI/KPA PFQ1246
MSRP:
Now:
$82.16
Was:
(You save
)
- Brand
- U.S. Winter instruments
- SKU:
- PFQ1246
- UPC:
Description
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
Description
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Crimp-On bezel
- ASME B40.100 compliant
- CRN registered
- Brass
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
Specification
Dial | 4" (100mm) |
Connection | 1/2" Bottom |
Range | 0/160 PSI/KPA |
Scale | Dual |
Case | AISI 304 SS |
Lens | Polycarbonate |
Ring | AISI 304 SS, Crimp-On |
Socket | Brass |
Bourdon Tube | Phosphor bronze C or coil shaped |
Movement | OT 59 brass |
Pointer | Anodized black aluminum |
Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
Socket Gasket | Buna N for two-piece internal socket seal |
Fill Plug | Buna N |
Lens Ring Gasket | Silicone rubber |
Working Pressure | 75% of full scale value |
Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerin Filled: -4°F to 150°F (-20°C to 65°C) |
Accuracy | ±1.5% of full scale value |
Enclosure Rating | IP65 |
