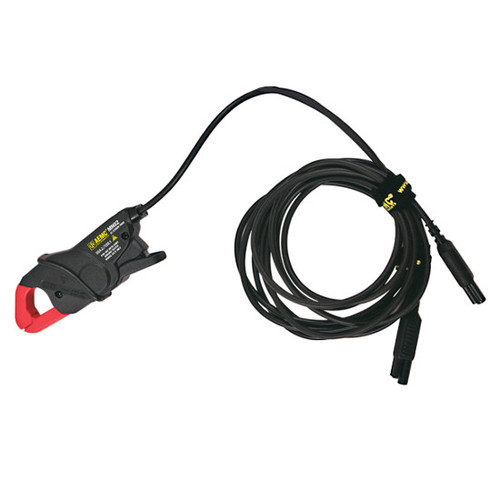

AC Current Probe Model MN82 for Models 6471 & 6472
$304.00
- SKU:
- 2135.71
Maximum Clamping Diameter 0.78" (20mm), bus bar 20x5mm Current Range 40Arms AC Measurement Range 0.5mA to 40A AC Output 6ft (2m) lead with proprietary CA connector Accuracy ±(5% R+ 2cts) typical Frequency Range 16 to 400Hz Operating Temperature -14° to +131°F (-10° to +55°C); 85% RH Storage Temperature -40° to +158°F (-40° to +70°C) Dimensions (HxWxD) 5.47 x 2.0 x 1.18 (139 x 51 x 30mm) Weight 6.5 oz (180g) Pollution Degree 2 Ingress Protection IP 40 EMC EN5008-1 Class B, EN 50082-2 Electrostatic discharge, IEC 1000-4-2 Safety Compliance 600V CAT III
0 Reviews Hide Reviews Show Reviews
Aemc
AEMC AC Current Probe Model MN82
$304.00
AEMC MN82 Description When two MN82 probes are used in conjunction with the AEMC 6471 and 6472, grounding electrodes can be measured without the necessity of installing auxiliary rods and conducting...
Aemc
AEMC AC Current Probe Model C177A
$449.00
AEMC AC Current Probe Model C177A The AC Current Probe Model C177A features a measurement range of 5mA to 200A, with a transformation ratio of 10,000:1. Its maximum clamping diameter is 2.05" (52mm)...
Aemc
AEMC AC Current Probe Model MN03
$84.55
AEMC MN03 Description When used with an AC voltmeter, it allows you to directly read the current measured on the voltmeter. Features Small, compact size Measurement range of 1 to 100A AC Jaw...
Aemc
AEMC AC Current Probe Model MN114
$240.00
AEMC MN114 Description:
The MN114 is a general purpose mini probe which offers 1mA to 10A AC, continuous cycle current range. The output signal is 100mV AC/A AC (1V at 10A). It was designed to...
