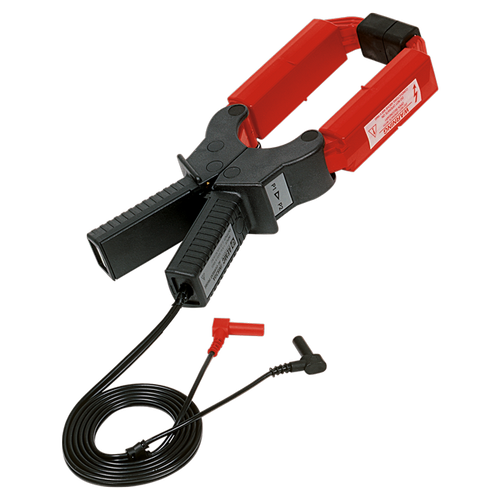

AEMC AC Current Probe Model JM810A

$575.00
SKU:
JM810A
Brand:
Quantity:

Product Description

AC Current Probe Model JM810A The JM810A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC. The "squared" jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction. Maximum Conductor Size Cable: 2.52" (64mm)Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm) Current Range 2000AAC Measurement Range 1 to 2000AAC Output Signal 1mAAC / AAC (2A @ 2000A) Transformation Ratio 2000:2 Output 5 ft (1.5m) lead with 4mm safety banana plug Accuracy 50/60Hz 0.5% @ 2000A Frequency Range 30Hz to 5kHz Phase Shift <0.5° (at maximum rating) Load Impedance ≤1Ω Overload 2400A for 10 min Operating Temperature +14° to +122°F  (-10° to +55°C) Storage Temperature -40° to +158°F  (-40° to +70°C) Dimensions  (HxWxD) 4.72 x 12.40 x 1.89” (120 x 315 x 48mm) Weight 2.65 lbs (1200g) Rating UL 94 V0 (handles), ABS UL 94 V2 (jaws) Ingress Protection IP 20 Safety Compliance IEC 1010-2-32, 600V max
