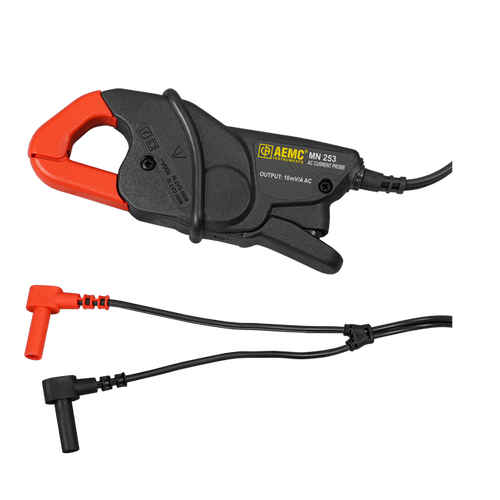

AEMC AC Current Probe Model MN253

$174.00
SKU:
MN253
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model MN253 The MN253 is a general purpose AC current probe with voltage output. It is designed for use with DMMs or with measuring instruments with voltage inputs. These probes permit the measurement or recording of current with instruments without current ranges. The voltage output is proportional to the current measured (through the jaws). The MN253 offers a voltage output of 10mV per amp measured. The MN253 has integral 5 ft (1.5m) leads terminated by shrouded banana plugs. Maximum Conductor Size 0.78" (20mm), bus bar 20x5mm Current Range 200Arms AC Measurement Range 0.1 to 240A Output 5ft (1.5m) lead with 4mm safety banana plug Transformation Ratio N/A Output Signal 10mV/A AC (2000mV @ 200A) Accuracy 50/60Hz 1%  ± 0.5A @ 200A Frequency Range 40Hz to 10KHz Phase Shift at 50Hz 2.5° @ 200A Open Secondary Voltage N/A Load Impedance 1MΩ Overload 240A for 10 min ON, 30 min OFF Dimensions  (H x W x D) 5.47 x 2.00 x 1.18” (139 x 51 x 30mm) Weight With 24” (610mm) Sensor 6.3 oz (180g) Operating Temperature 14° to +131°F  (-10° to +55°C) Storage Temperature -40° to +158°F  (-40° to +70°C) Operating Humidity 90% RH Pollution Degree 2 Ingress Protection (Ip) IP40 EMC EN 61326-1 Safety Compliance EN/IEC 61010-1 600V CAT III,EN/IEC 61010-032
