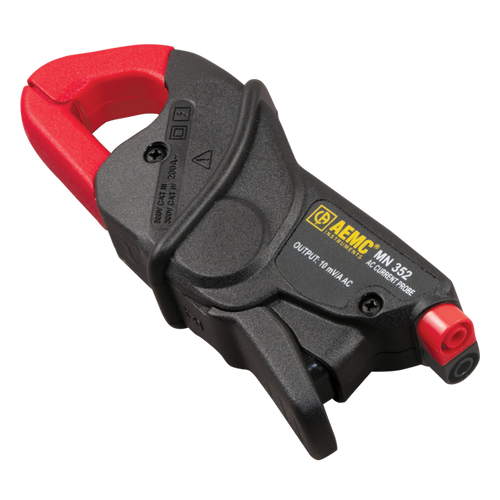

AEMC AC Current Probe Model MN352

$184.00
SKU:
MN352
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model MN352 The MN352 is a high accuracy and low phase shift AC current probe with voltage output. It is designed for use with DMMs or current measuring instruments with voltage inputs. The voltage output is proportional to the current measured (through the jaws). The MN352 has a jack output that accepts 4mm banana plugs. Maximum Conductor Size 0.78" (20mm), bus bar 20x5mm Current Range 150Arms AC Measurement Range 0.1 to 200A Output Two safety banana jacks (4mm) Transformation Ratio N/A Output Signal 10mV/AAC (1V @ 100A) Accuracy 50/60Hz 1% @ 80A Frequency Range 40Hz to 10kHz Phase Shift at 50Hz 2° @ 80A Open Secondary Voltage N/A Load Impedance 1MΩ Overload 200A continuous Dimensions  (H x W x D) 5.47 x 2.00 x 1.18” (139 x 51 x 30mm) Weight 6.3 oz (180g) Operating Temperature 14° to +131°F  (-10° to +55°C) Storage Temperature -40° to +158°F  ( -40° to +70 °C) Operating Humidity 90% RH Pollution Degree 2      Ingress Protection (IP) IP40 EMC EN 61326-1 Safety Compliance EN/IEC 61010-1 600V CAT III, EN/IEC 61010-032
