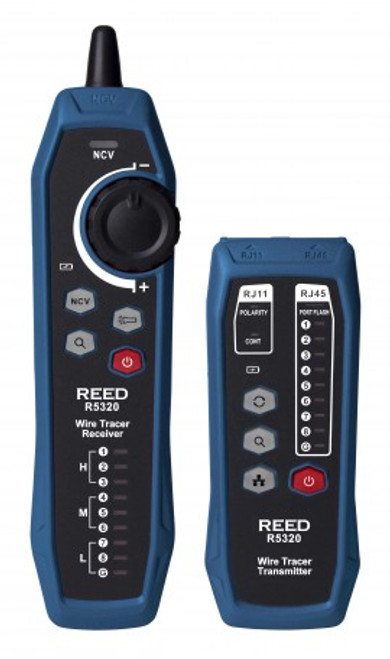

REED Instruments R5320 WIRE TRACER & CIRCUIT TESTING KIT
(No reviews yet)
Write a Review
Write a Review
REED Instruments
REED Instruments R5320 WIRE TRACER & CIRCUIT TESTING KIT
MSRP:
Now:
$89.00
Was:
(You save
)
- Brand
- REED Instruments
- SKU:
- R5320
- UPC:
Description
R5320 Includ
Description
R5320 Includes Only:
- Transmitter
- Receiver
- Micro-USB Charging Cable
- RJ11 Adapter Cable
- RJ45 Adapter Cable
- RJ11 Alligator Clip Adapter Cable
- Carrying Case
Features:
- Test modes include; identifying and locating wires, validating cable/line connections, verifying telephone line continuity/line polarity
- Modular adapters provide a direct connection to RJ45 and an RJ11 wiring
- Alligator clip adapter allows for easy connection to non-terminated cables
- The adjustable sensitivity wheel improves wire identification and eliminates false detection
- Visual (flashing LEDs) and audible (pulsating beeper) indicators
- Integrated flashlight supports applications in low lit environments
- Built-in non-contact voltage detector
- Earphone jack for loud environments (earphones sold separately)
- Rechargeable batteries
- Low battery indicator and auto shut-off
This versatile wire tracer is able to identify and test a variety of wires including RJ45 (Ethernet), RJ11 (Telephone) and any other non-energized wire with the included alligator clip adapter. The R5320 Wire Tracer and Circuit Testing Kit can perform a number of functions including; identifying and locating wires, cable/line connection validation, verifying telephone line continuity and line polarity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.
Specification
Testing Modes |
|
Transmitter | |
Port Flashing | Port flashing and wire tracking can be turned on at the same time |
Wire Tracking Signal Frequency | 125kHz |
Test Speed | Fast (2Hz); Slow (1Hz) |
Network Wire | Shielded/Unshielded |
Open-Short Circuit Test |
|
Open Polarity Test | Test range: DC: 5 to 70V or -70 to -5V |
Input Protection | 60VDC |
Receiver | |
Wire Tracking Sensitivity |
|
Input Impedance | >100M? |
General Specifications | |
Signal Mode | Modulation signal (125kHz) |
Visual Indicator | Yes (LEDs) |
Audible Indicator | Yes (Pulsating beeper) |
Sensitivity Settings | Yes (Adjustable wheel) |
Compatible Wire Type | RJ-11, RJ-45, Alligator clips for connection to non-terminated wire |
Non-Contact Voltage Detector | Yes (40 to 1000VAC) |
Earphone Jack | Yes (3.5mm) |
Built-in Flashlight | Yes |
Auto Shut-off |
|
Power Supply | 1050mAh rechargeable Li-ion battery |
Charging Time | Approx. 2 hours (Micro-USB) |
Low Battery Indicator | Yes |
Battery Life |
|
Operating Temperature | 14 to 122°F (-10 to 50°C) |
Operating Humidity Range | 20 to 75% |
Operating Altitude | <6561' (2000m) |
Product Certifications | CE, RoHS |
Dimensions |
|
Weight |
|
