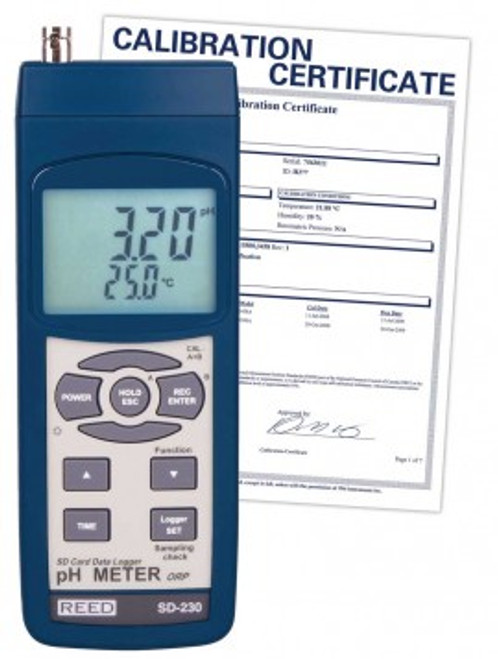

REED Instruments SD-230-NIST PH/ORP METER, DATA LOGGER W/NIST CERT

(No reviews yet) Write a Review

MSRP: $468.10

$409.00

(You save $59.10 )

Brand: REED Instruments
SKU:: SD-230-NIST
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED SD-230-NIST Description

This SD series pH and ORP datalogging meter is capable of measuring 0.00 to 14.00 pH and 0 to 1999 mV (ORP). The SD-230 features automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using an SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Please note pH and ORP electrodes are sold separately.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

Measures pH and ORP levels in water
Manual or automatic temperature compensation (with optional ATC probe, TP-07)
3-point calibration ensures best accuracy
Accepts pH/ORP Electrodes with BNC connector
Real time datalogger with integral SD memory card (optional)
User selectable sampling rate
Large, easy-to-read backlit LCD display
Data hold and Min/Max functions
Optional PC software features live tracking via USB connection
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED SD-230 Specifications

Temperature
Automatic Temperature Compensation (ATC)	Manual: 33.8 to 212?F (1 to 100?C) Optional ATC Probe (TP-07): 32 to 149?F (0 to 65?C)
ORP (mV)
Measuring Range	0-1999 mV
Accuracy	?(0.5% +2 dgt)
Resolution	1 mV
pH
Measuring Range	0.00 to 14.00
Accuracy	?(0.02 pH +2 dgt)
Resolution	0.01 pH
pH Electrode Compatibility	Any pH electrode with BNC connector
General Specifications
Display	Dual Display, LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory	Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off	Yes (after 10 mins/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA batteries or AC Adapter (optional)
Output	Yes
Battery Life	Sampling Time Dependent
PC Connectivity	USB Cable (optional)
Software	SW-U801-WIN Software (optional)
Software OS Compatibility	Windows XP / Vista / 7
Product Certifications	CE
Operating Temperature	32 to 122?F (0 to 50?C)
Storage Temperature	14 to 140?F (-10 to 60?C)
Operating Humidity Range	10-80%
Dimensions	7 x 2.7 x 1.9" (177 x 68 x 45mm)
Weight	1.1 lb (489g)
